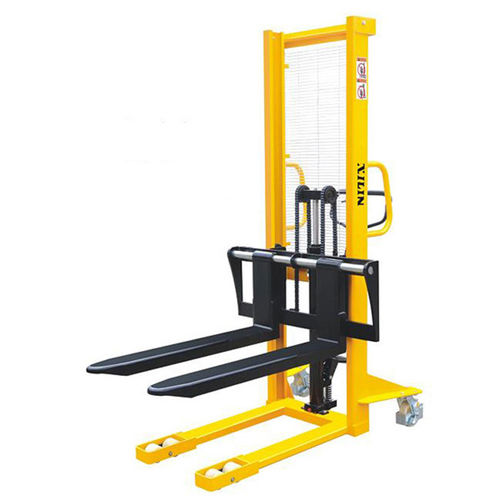

Manual stacker truck SDJA-I walk-behindfor warehousesteel
Add to favorites
Compare this product
Characteristics
- Energy
- manual
- Operator
- walk-behind
- Applications
- for warehouse
- Other characteristics
- steel, with adjustable fork
- Carrying capacity
1,000 kg, 1,500 kg
(2,204.6 lb, 3,306.9 lb)- Lifting height
1,600 mm, 2,500 mm
(62.99 in, 98.43 in)- Height of mast when lowered
1,840 mm, 2,080 mm, 2,085 mm
(72.4 in, 81.9 in, 82.1 in)- Height of mast when raised
2,080 mm, 2,960 mm
(81.89 in, 116.54 in)- Overall width
886 mm, 967 mm
(34.9 in, 38.1 in)- Overall length
1,650 mm, 1,660 mm
(65 in, 65.4 in)- Fork width
142 mm, 154 mm
(5.6 in, 6.1 in)- Fork length
1,070 mm
(42.13 in)- Fork thickness
60 mm
(2.36 in)- Turning circle radius
1,253 mm, 1,260 mm, 1,280 mm
(49.3 in, 49.6 in, 50.4 in)- Weight
250 kg, 270 kg, 322 kg
(551.16 lb, 595.25 lb, 709.89 lb)
Description
●With adjustable forks between 295/310mm to 930mm.
●Shaft type forks help to control adjustment better.
●High quality steel mast and strong steel construction ensures rigidity and durability.
●Welded forks deliver low-cost solution.
●High efficient pumps makes the control easier to operate.
●Foot and hand controlled lifting function allows the operator to work without having to perform extreme body movements.
●Metal grid protects user from lift chains.
●With safety wheel guard and brake system to ensure safety during operation.
