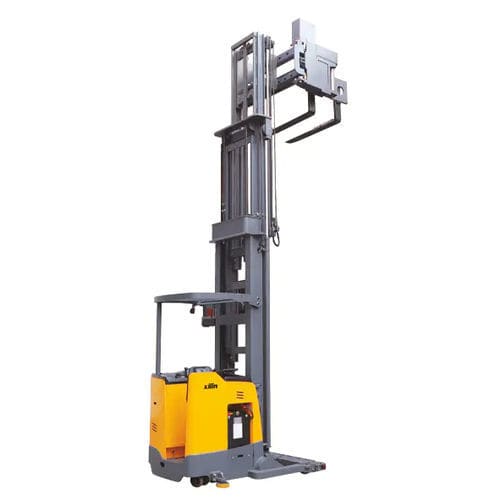

Electric forklift truck 0PD15L
ride-on

Electric forklift truck - 0PD15L - NINGBO RUYI JOINT STOCK CO., LTD - ride-on
Electric forklift truck - 0PD15L - NINGBO RUYI JOINT STOCK CO., LTD - ride-on
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Carrying capacity

1,500 kg
(3,306.9 lb)

Lifting height

Max.: 10,800 mm
(425.2 in)

Min.: 4,800 mm
(188.98 in)

Overall width

1,500 mm
(59.1 in)

Overall length

3,370 mm
(132.7 in)

Load center distance

600 mm
(23.6 in)

Weight without load

7,500 kg
(16,534.7 lb)

Track width front

1,270 mm
(50 in)

Height of mast when lowered

Max.: 4,800 mm
(189 in)

Min.: 3,250 mm
(128 in)

Overall height with mast raised

Max.: 11,800 mm
(464.6 in)

Min.: 5,800 mm
(228.3 in)

Height to top of overhead guard

2,400 mm
(94.5 in)

Seat height

1,200 mm
(47.2 in)

Length to fork face

2,370 mm
(93.3 in)

Fork carriage width

900 mm
(35.4 in)

Ground clearance at center of wheelbase with load

50 mm
(2 in)

Turning circle radius

2,100 mm
(82.7 in)

Minimum distance between centres of rotation

3,700 mm
(145.7 in)

Description

saiety and Productivny : • With full AC system and large-capacity battery, which can be used by two shifts in one charge. • CAN BUS communication technology is adopted. • Equipped with electric power steering (EPS) with the function of driving wheel automatic return. • The Latéral fork can rotate left and right in 180 degrees. With central control instrument, which intégrâtes operator's permission setting, running status display, opération control, fault display, multilingual interface, etc. • AC motor regenerative braking, reverse braking, ramp anti- sliding, etc. • Electromagnetic brake with short braking distance and no inertia impact, it is safe and reliable. structural: • Integrated layout design of console, ail opérations can be completed by one hand. • Seat with adjustable backrest angle, front and rear position and shock absorption function. • The whole steering wheel can be telescopically adjusted. • Handrails are designed on the left and right sides of the frame, convenient for operators to get on and off. • The mast adopts the guiding structure design and the roof guard frame adopts a brand-new structure. Easy Maintenance : • One-piece upper cover with fully open housing, it is convenient to maintain. • Sideway moving battery is easy for maintenance and replacement.
