AC Motor Start Capacitors
Features
Plastic Case, Moisture and Oil Resistant
Voltages from 110 VAC- 330 VAC
SEA-1 Meets EIA Type 1 Specifications
SEA-2 Meets EIA Type 2 Specifications
UL Recognized Capacitors
General Specifications
Operating Temperature:
-40 to +65°C
Voltage Range:
110 - 330 VAC
Capacitance Range:
21 - 1280μF
Capacitance Tolerance:
-0% ~ +20%
Operating Frequency:
50 - 60Hz
Case Size:
8 Standard Sizes from
1.437" x 2.750" - 2.562" x 4.365"
Termination:
¼” Quick Disconnect Terminals (Std.)
Product Description:

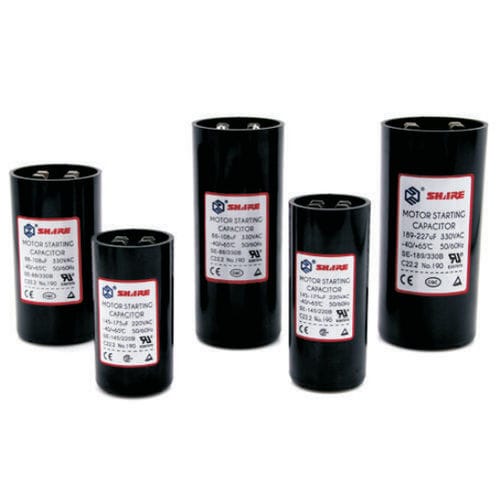

SHARE's type SEA-1 and SEA-2 AC Motor Start units are
non-polarized aluminum electrolytic capacitors designed for intermittent AC duty. These capacitors are used in starting fractional horsepower, single-phase electric motors, as well as in gear motor applications. The capacitors are housed in rugged plastic cases, which require no added insulation. Mounting hardware, end caps and brackets are available to facilitate mounting. Units can be supplied with bleeder resistors
and lead wires if required.
