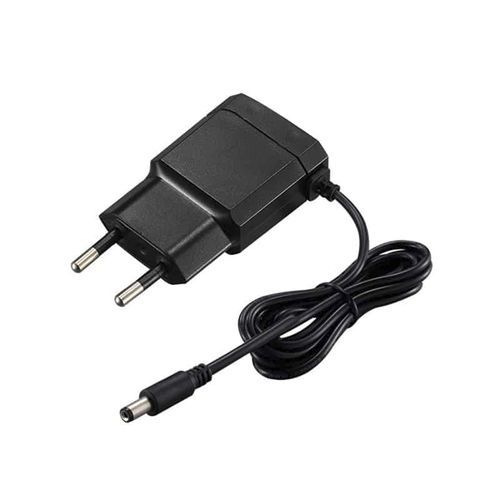

Power supply for medical applications YS5M-E seriesplug-inAC/DCwith short-circuit protection
Add to favorites
Compare this product
Characteristics
- Mounting / format
- plug-in
- Type
- AC/DC
- Protection
- with short-circuit protection, with overcurrent protection, with overload protection
- Certifications
- CE
- Applications
- for medical applications
- Input voltage
Max.: 240 V
Min.: 100 V
- Output voltage
Max.: 36 V
Min.: 5 V
- Current
Max.: 1 A
Min.: 0 A
- Power
4.8 W, 5 W
Description
Standby Power: <0.1W
Energy efficiency level VI
Leakage Current: ＜0.1mA
Extremely low leakage current
Withstand voltage : 4KV
Working TEMP.: - -20°C~+60°C
Working Humidity： - 20%-95% RH non-condensing
Storage TEMP.,Humidity and altitude: - 10% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug: - EU 2pin
MTBF: - 100Khrs min. MIL-HDBK-217F(25℃)
Dimension: - 58*26*35mm
Weight: - 70g
Packing: - 100pcs/ctn
