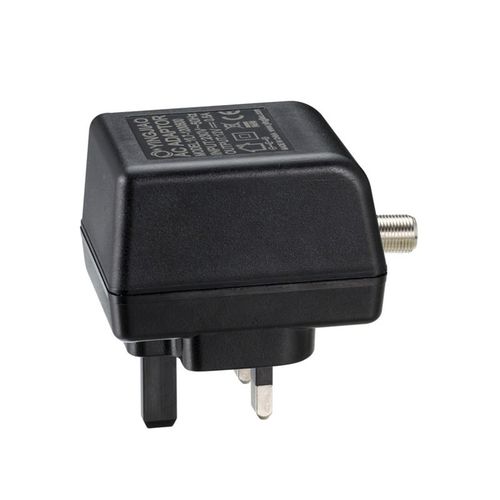

Plug-in power supply YL7 series

AC/DClinearwith short-circuit protection

Protection: Short Circuit, OCP, OVP, OTP Inrush Current: 65 Amps max. at 230VAC/50Hz, full load Input current: - 0.058A max. Inrush Current: - 65 Amps max. at 230VAC/50Hz,full load Leakage Current: - 0.25mA Max. at 264VAC input No Load Power Consumption ： - ＜ 1.5W Protections： - Short Circuit /Over Current /Over Voltage Short Circuit Protection (SCP)： - Protection to Zero Voltage Over Voltage Protection (OVP): - ≤Vout*150% Over Current Protection (OCP): - 110%-180% Working TEMP.: - -20°C-50°C Working Humidity： - 5%-90% RH non-condensing Storage TEMP.,Humidity and altitude: - 40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. Input Plug: - EU2pin
