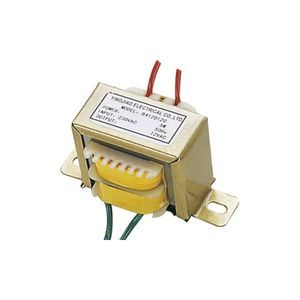

Short circuit-proof transformer YT1.2ACprotection
Add to favorites
Compare this product
Characteristics
- Other characteristics
- protection, AC, short circuit-proof
- Electric power
2 W
- Primary voltage
Max.: 240 V
Min.: 100 V
- Secondary voltage
Max.: 36 V
Min.: 5 V
- Primary current
100 mA
- Frequency
50 Hz, 60 Hz
Description
Dimension: 10*15mm
N.W.: 150g
No Load Power Consumption ： - ＜ 1.5W
Protections： - Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP)： - Protection to Zero Voltage
Over Voltage Protection (OVP): - ≤Vout*150%
Over Current Protection (OCP): - 110%-180%
Working TEMP.: - -20°C-50°C
Working Humidity： - 5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude: - 40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Certificates and approvals: - GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION: - Radiation Test&Conduction Test: EN 55022/FCC Part 15
Harmonic Test : EN 61000-3-2
Flicker Test : EN 61000-3-3
EMS IMMUNITY: - ESD Test:EN 61000-4-2
RS Test:EN 61000-4-3
EFT Test:EN 61000-4-4
Surge Test:EN 61000-4-5
CS Test:EN 61000-4-6
DIP Test:EN 61000-4-11
