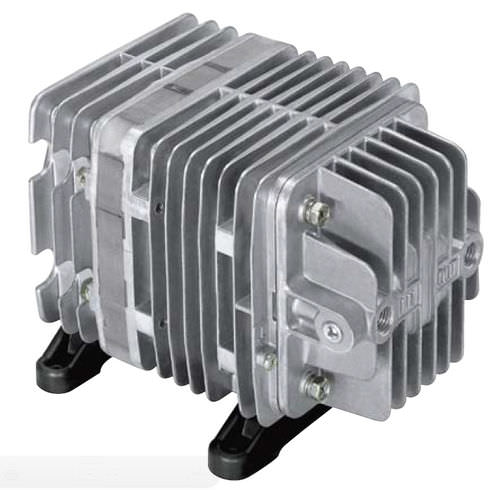

Linear piston vacuum pump VP 0660
oil-freesingle-stagefor laboratories

linear piston vacuum pump
linear piston vacuum pump
linear piston vacuum pump
linear piston vacuum pump
linear piston vacuum pump
linear piston vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
linear piston
Lubrication
oil-free
Number of stages
single-stage
Applications
for laboratories, for medical applications, for the chemical industry, for gas, OEM, for fuel cells, air sampling
Other characteristics
compact, low-noise level, small, air-cooled, portable, with electric actuator, compressor, mini
Flow rate

25 l/min (6.6 us gal/min)

Ultimate vacuum

-800 mbar (-11.6 psi)

Description

The VP 0660, assembled by Nitto, is an AC Pump, that features an attainable vacuum of -800 mbar. This device is powered by a 230 V or 120 V of rated voltage with a 25 l/min free air displacement. In addition, it operates with an utmost power consumption of 80 W and a rated frequency of 50 Hz. It also offers users a continuous type of duty cycle and is expected to have a life expectancy of 6.000 h.

VIDEO
