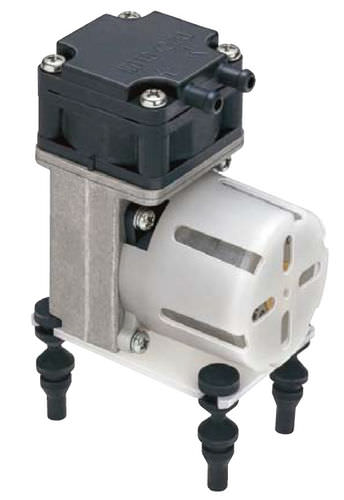

Air pump DP 0102Selectricdiaphragmindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- air
- Operation
- electric
- Technology
- diaphragm
- Domain
- industrial, for the chemical industry, for laboratories, for medical applications
- Applications
- transfer
- Other characteristics
- compact, low-noise level, portable, small
- Flow
7 l/min
(1.8492 us gal/min)- Pressure
Max.: 0.45 bar
(6.527 psi)Min.: -0.267 bar
(-3.873 psi)
Description
The DP 0102S is a pump compressor that runs continuously on a 24 V rated voltage for 5.000 h. this model weighs 0.25 kg and is capable of reaching vacuum pressures up to -267 mbar with a 7 l/min maximum free air displacement. It is equipped with a 6mm O.D. straight nipple for inlet and outlet, and has a current of 0.5 A at max.
