Butyl rubber sealing tape No.6800
Add to favorites
Compare this product
Characteristics
- Options
- butyl rubber
Description
Overview
Foam sealing material with closed cell structure offering flexibility and elasticity as well as weather resistance and watertightness.
Product description
No.6800 Series are high-function foam sealing materials composed of EPDM rubber foam with a closed cell structure, providing superior durability and weather resistance among general-purpose rubbers. The series includes tape products coated with butyl adhesive (EM-142) and synthetic resin adhesive (No.681); choose the type that matches your application requirements.
Features
Structure

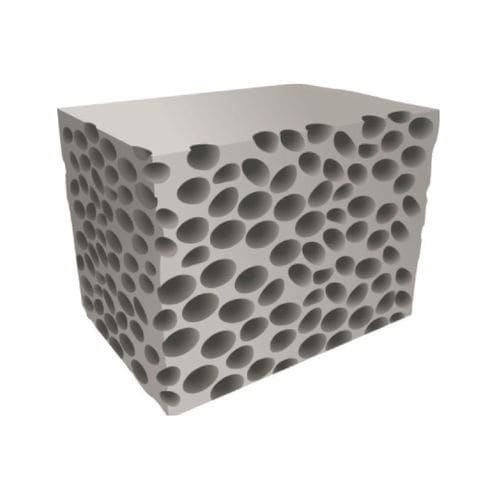

Closed-cell EPDM rubber foam structure designed for sealing applications.
Specifications
Thickness [mm] : 2–15
Width [mm] : 1,000
Length [m] : 2
Properties
Product No. : No.6800 / No.681 / No.6801 / No.6801P / EM-142
Specific gravity : 0.11
Tensile strength [N/cm2] : 35
Elongation [%] : 240
Compressive hardness [N/cm2] (25%) : 2.5
Compressive hardness [N/cm2] (50%) : 8.0
Remarks: The above values are sample observed values and do not constitute guaranteed performance.
Applications
Characteristics / technical specifications
Foam sealing material with closed cell structure offering flexibility and elasticity as well as weather resistance and watertightness.
Product description
No.6800 Series are high-function foam sealing materials composed of EPDM rubber foam with a closed cell structure, providing superior durability and weather resistance among general-purpose rubbers. The series includes tape products coated with butyl adhesive (EM-142) and synthetic resin adhesive (No.681); choose the type that matches your application requirements.
Features
- Superior weather resistance and watertightness; better heat resistance than foam water sealers such as urethane and polyethylene.
- EM-142 is coated with butyl rubber adhesive for good adhesion to rough surfaces.
- No.681 is coated with synthetic resin adhesive offering strong holding power, heat resistance and weather resistance.
- Closed cell structure delivers excellent flexibility and elasticity.
- Easy installation in clearances with complex shapes.
Structure
Closed-cell EPDM rubber foam structure designed for sealing applications.
Specifications
Thickness [mm] : 2–15
Width [mm] : 1,000
Length [m] : 2
Properties
Product No. : No.6800 / No.681 / No.6801 / No.6801P / EM-142
Specific gravity : 0.11
Tensile strength [N/cm2] : 35
Elongation [%] : 240
Compressive hardness [N/cm2] (25%) : 2.5
Compressive hardness [N/cm2] (50%) : 8.0
Remarks: The above values are sample observed values and do not constitute guaranteed performance.
Applications
- Sealing joint parts of air-conditioner housings.
- Locations requiring superior watertightness.
- Attachment parts for sunroofs.
Characteristics / technical specifications
- Material: EPDM rubber foam (closed cell)
- Available thickness: 2–15 mm
- Standard width: 1,000 mm
- Standard length: 2 m
- Specific gravity: 0.11
- Tensile strength: 35 N/cm²
- Elongation: 240%
- Compressive hardness: 2.5 N/cm² at 25%, 8.0 N/cm² at 50%
- Adhesive options: butyl rubber adhesive (EM-142) and synthetic resin adhesive (No.681)
