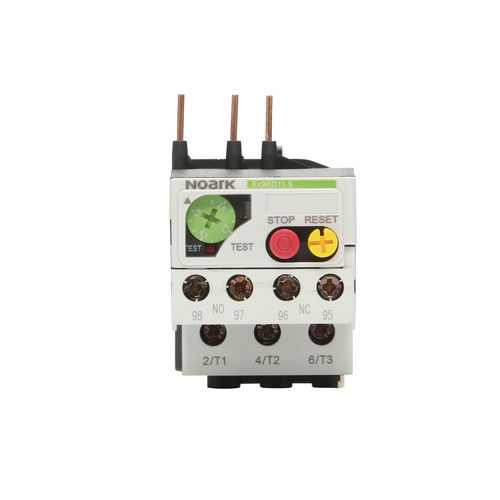

Overload relay Ex9RD11.5A0.16phase lossDIN railmounting
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- overload, phase loss
- Mounting
- DIN rail, mounting
- Reset
- manual reset
- Norms
- IEC
- Other characteristics
- adjustable
- Tripping current
11.5 A
Description
Certifications
• UL Listed, File Number E353865
• Certified for Canada According to CSA Standards
• IEC/EN 60947-4-1
• CE Compliant
• Features
• Rated current up to 630 A at 600 Vac, 50/60 Hz
• Overload protection trip Class 10 A
• Phase loss sensitivity
• Adjustable current setting for overload protection
• Automatic or manual reset selectable
• Trip-free mechanism
• Status indication
• STOP and TEST function
• Direct mount to contactors or 35 mm DIN rail mounting base option
