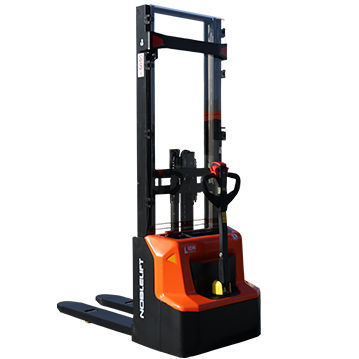

Battery-powered stacker truck SWB-130/130S/130D
walk-behind24 Vhandling

Battery-powered stacker truck - SWB-130/130S/130D - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / handling
Battery-powered stacker truck - SWB-130/130S/130D - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / handling
Battery-powered stacker truck - SWB-130/130S/130D - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / handling - image - 2
Battery-powered stacker truck - SWB-130/130S/130D - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / handling - image - 3
Battery-powered stacker truck - SWB-130/130S/130D - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / handling - image - 4
Battery-powered stacker truck - SWB-130/130S/130D - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / handling - image - 5
Battery-powered stacker truck - SWB-130/130S/130D - Noblelift Intelligent Equipment Co., Ltd. - walk-behind / 24 V / handling - image - 6
Add to favorites
Compare this product

Characteristics

Energy
battery-powered
Operator
walk-behind
Voltage
24 V
Applications
handling, narrow-aisle
Other characteristics
steel
Carrying capacity

1.3 t
(1.4 us ton)

Lifting height

3,510 mm
(138.19 in)

Free lift

1,800 mm
(70.9 in)

Overall width

Min.: 800 mm
(31.5 in)

Max.: 1,481 mm
(58.3 in)

Overall length

1,710 mm, 1,762 mm, 1,790 mm
(67.3 in, 69.4 in, 70.5 in)

Turning circle radius

1,300 mm, 1,320 mm, 1,345 mm, 1,400 mm
(51.2 in, 52 in, 53 in, 55.1 in)

Battery capacity

100 Ah

Motor power traction

0.65 kW
(0.884 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4.2 km/h, 4.5 km/h
(2.61 mph, 2.8 mph)

Lifting speed

100 mm/s, 110 mm/s, 140 mm/s

Weight

670 kg, 745 kg, 835 kg
(1,477.1 lb, 1,642.44 lb, 1,840.86 lb)

Description

With a full free lifting mast, this stacker offers an ideal solution for material handling in confined spaces like supermarkets and internal workshops. Standard with a lithium battery, it ensures quick replacement and charging flexibility. • The full free lifting mast is an ideal choice for working in limited height spaces. • Soft start enables more stable and controllable lifting operations. • Stability and performance of the truck is enhanced greatly via specialized CJ channel steel. • Vertical drive function enables easy steering in narrow spaces such as lorries and elevators safely. • External programming port, diagnosing faults without removing the cover. Convenient and fast maintenance. • Patented chain turning structure with high strength. • Standard speed reduction at turns ensures stability and safety during large angle turns. • Makes it convenient to adjust the pressure on top of supporting wheels without lifting up the machine. The machine can ensure high efficiency even in multiple shifts. Lithium batteries have functions such as fast charging, maintenance free, environmentally friendly, and intelligent display, while also easy to maintain, cost-effective, and improving work efficiency greatly. The tiller of the truck with ergonomic design has comfortable soft grips for comfort daily operation. All buttons are big and can be easily reached by operators even in case of working in gloves. Integrated PIN code panel with LCD display for smart control and operation.
