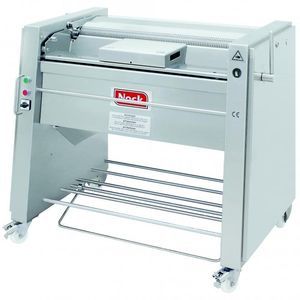

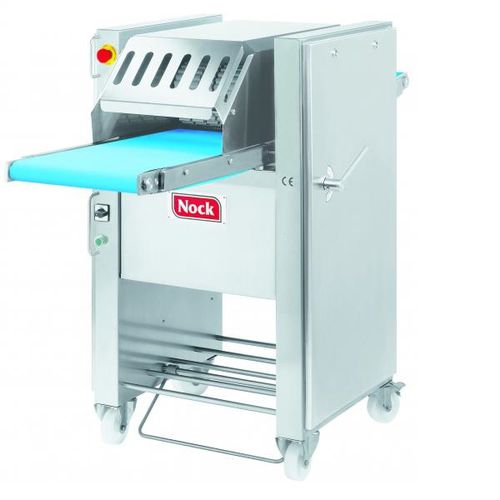

Meat derinder Cortex CB 496
automaticwith conveyor

meat derinder
meat derinder
meat derinder
meat derinder
meat derinder
Add to favorites
Compare this product


Characteristics

Food product
for meat
Other characteristics
with conveyor, automatic
Cut width

430 mm (17 in)

Cutting speed

0.4 m/s (1.3 ft/s)

Description

Features and application range features: •derinding machine with medium long infeed conveyor for automatic processing and for „manual“ derinding with open top application: •automatic derinding of all flat and high pieces as for example belly, back fat, rind cut to size, partial cuts, shoulders etc. •derinding of round parts, for example ham or shoulder, manually with open top Standard equipment •infeed conveyor •discharge slide sheet •blade gap infinitely adjustable •spring suspended blade holder for perfect derinding results •spring suspended pressure roller, additionally continuously variable in height •tooth roller with scraper comb •exchangeable infeed table and foot switch bar to derind round pieces with open top (machine can be effortlessly converted) •NOCK POWER PLATES® grant robustness and service friendliness also in industry •NOCK EASY-FLOW® safety cover for reliable product flow and better hygiene during processing •conveyors can be removed within seconds without any tools •lockable castors •stainless steel •stainless steel bearings Options •discharge conveyor •discharge conveyor for removed skin •plastic modular belts •inflated pressure balloon •NOCK Integrated Product Return System® Technical data Cortex CB 496 maximum throughput heigth 90 mm blade gap 0 - 5 mm apply length on infeed conveyor 400 mm infeed conveyor (1) 850 x 425 mm discharge slide sheet (1) 850 x 425 mm Schwartenabfuhrband (1) 650 x 425 mm overall dimension W x H x D (with/without discharge conveyor) 800 x 1190 x 1860 / 1210 mm weight (with/without discharge conveyor) 240 / 220 kg
