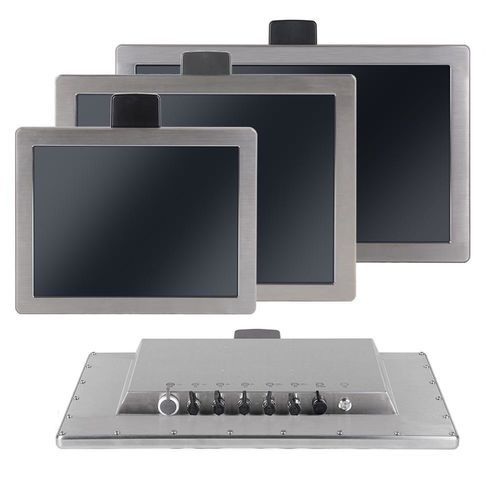

TFT LCD panel PC WP1XX1T-R1 Series
LED backlight5-wire resistive touch screen15"

TFT LCD panel PC - WP1XX1T-R1 Series - NODKA Automation Technology - LED backlight / 5-wire resistive touch screen / 15"
TFT LCD panel PC - WP1XX1T-R1 Series - NODKA Automation Technology - LED backlight / 5-wire resistive touch screen / 15"
TFT LCD panel PC - WP1XX1T-R1 Series - NODKA Automation Technology - LED backlight / 5-wire resistive touch screen / 15" - image - 2
TFT LCD panel PC - WP1XX1T-R1 Series - NODKA Automation Technology - LED backlight / 5-wire resistive touch screen / 15" - image - 3
TFT LCD panel PC - WP1XX1T-R1 Series - NODKA Automation Technology - LED backlight / 5-wire resistive touch screen / 15" - image - 4
TFT LCD panel PC - WP1XX1T-R1 Series - NODKA Automation Technology - LED backlight / 5-wire resistive touch screen / 15" - image - 5
TFT LCD panel PC - WP1XX1T-R1 Series - NODKA Automation Technology - LED backlight / 5-wire resistive touch screen / 15" - image - 6
TFT LCD panel PC - WP1XX1T-R1 Series - NODKA Automation Technology - LED backlight / 5-wire resistive touch screen / 15" - image - 7
TFT LCD panel PC - WP1XX1T-R1 Series - NODKA Automation Technology - LED backlight / 5-wire resistive touch screen / 15" - image - 8
TFT LCD panel PC - WP1XX1T-R1 Series - NODKA Automation Technology - LED backlight / 5-wire resistive touch screen / 15" - image - 9
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, LED backlight, 5-wire resistive touch screen
Display size
15", 21.5", 19"
Resolution
1920 x 1080, 1024 x 768, 1280 x 1024
Processor
Intel® Celeron J1900, Intel® Celeron® J6412, quad-core, dual-core, Intel® Core™ i3-8145U, Intel® Core i5 7200U
Memory
DDR4 DRAM, DDR3L DRAM
Operating system
Linux, Windows, Windows 10, Windows 7, Windows 8
Construction
fanless, ultra-compact, modular, stainless steel frame
Mounting
VESA mounting, wall-mounted
Applications
industrial, for IoT applications, for the food industry, for hazardous areas, for the pharmaceutical industry, for marine applications, for the mining industry, for clean rooms
Protection level
rugged, waterproof, dust-proof, IP69K
Other characteristics
all-in-one, high-performance, wide temperature range

Description

P1501T-R1 | 15" IP69K Resistive Touch Waterproof Panel PC with Stainless Steel Housing 15″ resistive touch waterproof panel PC with stainless steel housing, Intel Celeron/Core processor options, HDMI input, wide voltage support, and multiple mounting options Features 15” XGA TFT LCD (1024×768) with 420 cd/m² brightness Resistive touch screen for industrial environments Intel® Celeron & Core processor options for flexible performance Full IP69K-rated stainless steel housing for extreme conditions Multiple mounting options (Desktop, VESA) HDMI signal input for high compatibility Wide voltage input (DC12-24V) for flexible power options Long lifespan LED backlight with MTBF of 50,000 hours Durable 3H surface hardness for scratch resistance Shock & vibration resistance, EMC-certified (CE/FCC Class B) WP1901T-R1 | 19" IP69K Resistive Touch Waterproof Panel PC with Stainless Steel Housing 19″ resistive touch waterproof panel PC with stainless steel housing, Intel Celeron/Core processor options, HDMI input, wide voltage support, and multiple mounting options Features 19” SXGA TFT LCD (1280×1024) with 250 cd/m² brightness Resistive touch screen for industrial environments Intel® Celeron & Core processor options for flexible performance Full IP69K-rated stainless steel housing for extreme conditions Multiple mounting options (Desktop, VESA) HDMI signal input for high compatibility Wide voltage input (DC12-24V) for flexible power options Long lifespan LED backlight with MTBF of 30,000 hours Durable 3H surface hardness for scratch resistance Shock & vibration resistance, EMC-certified (CE/FCC Class B) WP2151T-R1 | 21.5" IP69K Resistive Touch Waterproof Panel PC with Stainless Steel Housing 21.5″ resistive touch waterproof panel PC with stainless steel housing, Intel Celeron/Core processor options, HDMI input, wide voltage support, and multiple mounting options Features 21.5” Full HD TFT LCD (1920×1080) with 300 cd/m² brightness Resistive touch screen for industrial environments Intel® Celeron & Core processor options for flexible performance Full IP69K-rated stainless steel housing for extreme conditions Multiple mounting options (Desktop, VESA) HDMI signal input for high compatibility Wide voltage input (DC12-24V) for flexible power options Long lifespan LED backlight with MTBF of 30,000 hours Durable 3H surface hardness for scratch resistance Shock & vibration resistance, EMC-certified (CE/FCC Class B)
