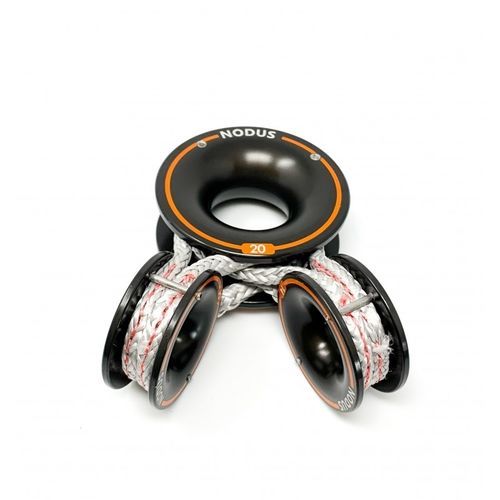

Rotating pulley Mickey-Ring® 3D

for cablesaluminumadjustable

Apivot anchor for 3-axis connections, the Mickey-ring® friction block is a set of 3 swiveling and movable Dyneema® textile link connection points, ideal for efficient adjustment and 3D transfers. Lightweight and compact, the multiaxial triple friction pulley allows self-alignment of ropes at different angles, with each friction ring independently adjustable and movable. This product is: Complies with Machinery Directive 2006/42/CE A pivot anchoring device with 3 self-orienting points, the 3D Mickey-Rings® friction sheave allows you to multiply your mooring points with large deflection angles without increasing friction. It has an exceptional weight-to-resistance ratio (10 times lighter than a pulley), designed for heavy loads. Fields of application : Rescue working at heights forestry work, pruning, skidding ropeway maintenance Operation: multiple harness connections Self-orienting 3-point multiple anchorage Anti-twist for ropes and lanyards Load transfer High-strength, low-friction ring in 7075 aluminum Hard anodizing treatment Elastic strength of around 300 MPa, Young's modulus of 75 GPa Inter-ring crimping by textile pin : Loop Dyneema DSK78 12 spindles
