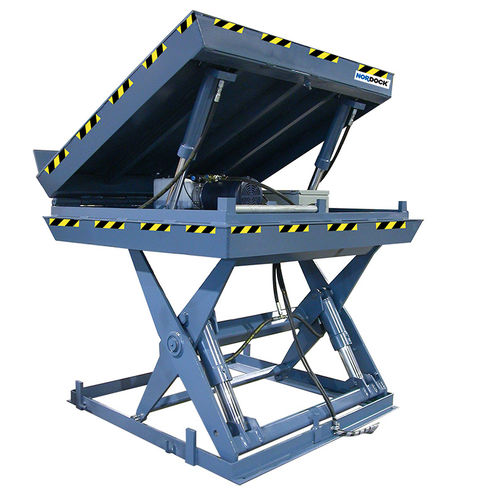

Stationary scissor lift NORDOCK® ERGONOMIC™ series

electrichydraulic

SCISSOR LIFT The Scissor Lift mounted Tilt Platform provides a new level of range and comfort for users by adding the benefits of a lifting platform. Description Operators can quickly and easily lift and tilt heavy materials and/or containers at the push of a button, reducing bending and lifting. SL Features & Benefits Full Width Piano Hinge Powered Up, Powered Down 6″ High Load Stop on Hinged Side Smooth Plate Deck Surface SL Options & Accessories Beveled or Electric Toe Guards Accordion Safety Curtain Air Actuation Description The NORDOCK® ERGONOMIC™ Series of scissor lifts MODEL SL are available in capacities from 1,000 -10,000 lbs. and deck sizes ranging from 2′ wide x 3′ long to 8′ wide x 8′ long. Vertical travel ranges from 24″ to 56″ depending on deck size and capacity chosen. Push button, foot pedal or auto leveling controls raising and lowering. Standard features include cam follower rollers, spherical bearings, and velocity fuses on hydraulic cylinders. Construction The platform is a unitized welded structure painted high visibility yellow with safety striping. The scissor legs are constructed of solid high tensile steel plate and heavy wall structural cross tubes. Self-aligning spherical bearings are utilized at the center scissor and cylinder base positions. Lifetime lubricated bushings are used at all other pivot points.
