Copper thickness gauge Photon

foilaluminumstationary

Overview

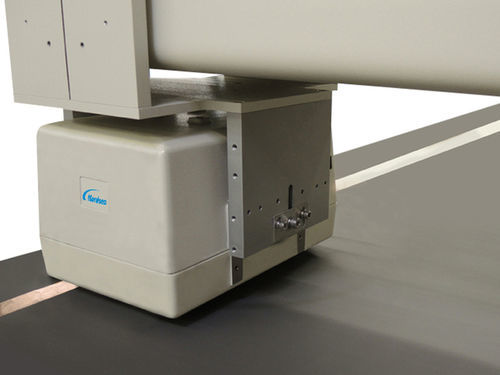

This photon transmission sensor measures electrode coat weight applied to aluminum and copper foil substrates on anode and cathode coating lines. The Photon gauge provides high-accuracy, stable and reliable measurement performance typically better than ±0.05% of actual coating weight, with optics and a very small beam enabling high-resolution visibility and narrow-streak detection.

Features & Benefits

• Optical photon-transmission technology optimized for lithium‑ion battery electrode coatings
• Suitable for patch, zone and continuous coating processes
• High measurement resolution and precise streak and edge detection
• High scan speed for fast, wide coating lines
• Non-nuclear alternative with no performance degradation over time

Applications

• Anode coating weight control
• Cathode coating weight control
• Coating lines requiring IECx capability for hazardous locations
• General electrode coat weight measurement on conductive foils

System configuration / Associated products

• AccuTrak O-Frame - Scanner
• MiniTrak O-Frame - Scanner
• MiniTrak S-Frame - Scanner
• SlimTrak II - Space-saving scanner

Other measurement systems

• FilmPro - Infrared thickness gauge
• Series 9 - Moisture and coat weight gauge
• CW 9000 - Compact coat weight gauge
• GBS - Gamma thickness gauge
• OptiMike - Optical thickness gauge
• DataFusion - Data visualizer & historian

Technical specifications

• Model: Photon
• Measurement performance: typically better than ±0.05% of actual coating weight (anodes and cathodes)
• Supported substrates: aluminum foil and copper foil
• Optics: optimized design with ultra-small beam for high-resolution measurements
• Detection: sharp streak and edge detection; capable of narrow-streak detection
• Scan speed: high scan rate suitable for fast, wide process lines
• Process fit: patch, zone and continuous coating lines
• Safety/Certification: IECx capability for hazardous locations (as specified in product documentation)
