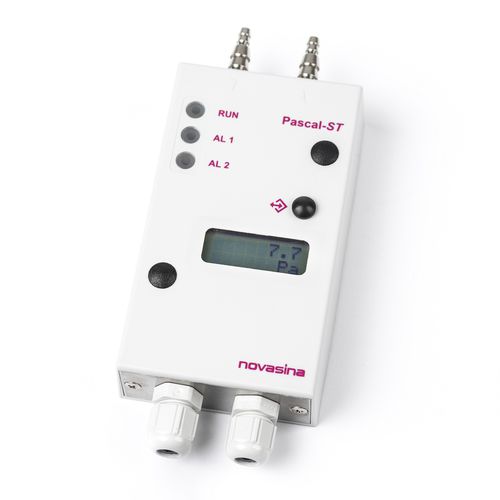

Differential pressure transmitter Pascal-ST/ZB seriesmembranesiliconanalog
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Technology
- membrane, silicon
- Output
- analog
- Applications
- for pharmaceutical applications
- Other characteristics
- precision, with LED display
- Pressure range
Min.: -100 Pa
(-0.01 psi)Max.: 100 Pa
(0.01 psi)- Process temperature
Min.: 5 °C
(41 °F)Max.: 45 °C
(113 °F)
Description
Differential pressure sensor based on static pressure measurement (diaphragm). Ideal for applications with high demands in the pharmaceutical and semiconductor industries, also for mini environments and FFU.
2 programmable relay contacts with adjustable thresholds and
Red/green LED indicator
• High Accuracy differential pressure sensor
• Drift-free and long-term stability due to automatic zero point calibration
• 2 Relay output
• Compact and robust
• 3 measuring ranges available 0 to 50 / -25 to +25 / -100 to +100 Pascal
• LCD Display optional
• Configuration and calibration with USB configuration cable for Windows PC.
