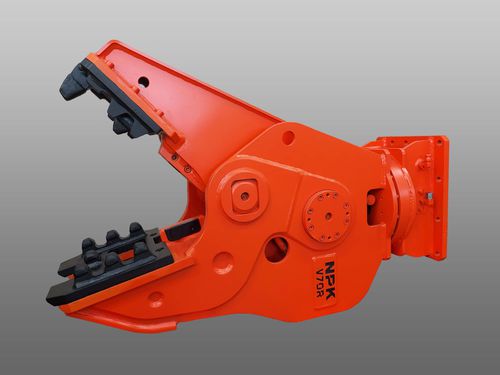

Concrete pulverizer V70R

jawlargefor primary demolition

• Standard integrated booster that automatically activates when the jaws meet resistance. • Wide width of jaw (large crushing area). • Bolt on tooth plates on arm and frame; easy replacement. • Different style of tooth plates available. • Piston rod fully protected against damage. • High productivity and extreme power. • No drain line required. • Long rebar cutter of 200 mm (in center of the jaw). • No additional pressure reduction is required in the hydraulic system. Excavator weight (ton) - 6 - 10 Working pressure (MPa) - 26 Oil flow (l/min) - 50 - 80 Rotation pressure (MPa) - 14 Rotation oil flow (l/min) - 10 - 15 Max. force (A) (kN) - 490 Max. force (B) (kN) - 660 Max. force (Cutter) (kN) - 1225
