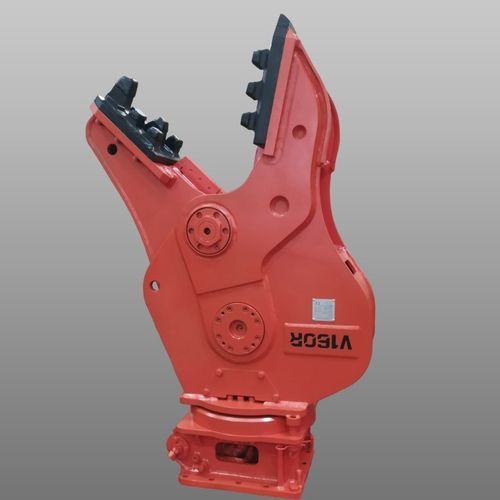

Concrete pulverizer V160R

hydrauliclargefor primary demolition

• Standard integrated booster that automatically activates when the jaws meet resistance. • Wide width of jaw (large crushing area). • Bolt on tooth plates on arm and frame; easy replacement. • Different style of tooth plates available. • Piston rod fully protected against damage. • High productivity and extreme power. • No drain line required. • Long rebar cutter of 200 mm (in center of the jaw). • No additional pressure reduction is required in the hydraulic system. Different style of tooth plates for different types of applications Excavator weight (ton) - 16 - 21 Working pressure (MPa) - 28 Oil flow (l/min) - 80 - 150 Rotation pressure (MPa) - 14 Rotation oil flow (l/min) - 10 - 15 Max. force (A) (kN) - 795 Max. force (B) (kN) - 1050 Max. force (Cutter) (kN) - 1960
