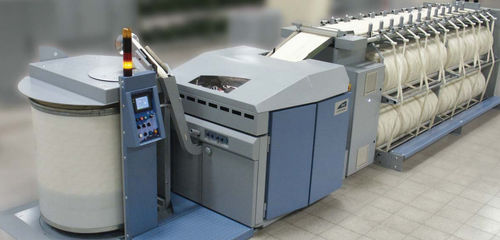

Comber ERA

Add to favorites
Compare this product


Progressive combing achieved by a circular comb pinned over 360° and turning at a constant speed Produced tops featuring new quality standards Precise and recordable adjustments, ensuring consistent high levels of cleanliness Specific combing principle, very gentle to the fibres Fairly high production : more than 50 kg/h for a 21/22 µ wool Electrical adjustments, from the machine screen or remote, of the nip distance and most textile parameters, without stopping the machine Reduced operational and maintenance costs Possibility of integrating the machine into internal or external overlooking networks. Technical specifications * UsesCombing - recombing of wool and long staple chemical fibres FeedingCreel for double end cans Ø 700 - 800 - 1,000 - 1,200mm or for Ø 600 x 550mm balls Deliverynto 1 can, Ø 700 - 800 / 1,000mm, Ø 700 - 800 - 1,000 - 1,200 / 1,200mm, Ø 1,200 / 1,400mm SpeedUp to 260nips/min Feed length4 to 11mm/cycle Feed gridInternal width: 450mm Feed combPinned width: 480mm, 9 rows Front comb510mm Circular combØ 103mm - pinned on 360° - Pinned width: 510mm Circular brushMonobloc Ø 160mm with automatic forward motion and lateral removal Doffer dia.(rigid clothing) Ø 120mm Drawing off cylindersØ 25/28mm Nip distance25 - 42mm ApronInside development: 580mm - Width: 540mm - Thickness: 3.5mm Tuft tail controlPneumatic Compressed airPressure: 5bars - Average consumption: 2Nm3/h Installed power10kW Approx. net weightMachine body and delivery 3,200 - 3,700kg according to delivery
