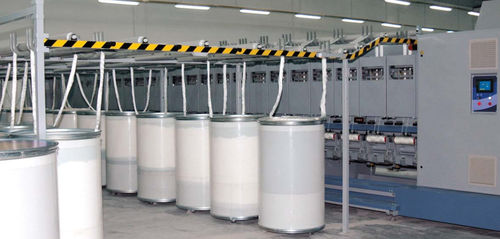

Chemical fiber rubbing finisher FMV40
for fiber blendsfor woolvertical

chemical fiber rubbing finisher
chemical fiber rubbing finisher
Add to favorites
Compare this product


for chemical fibers, for fiber blends, for wool, vertical


A series of vertical rubbing frames featuring a great adaptation capacity and permitting to win the challenges of performance, quality and work conditions: Interchangeable drafting systems for a wide range of counts Simple and economical rubbing and winding systems ensuring : Perfect roving cohesion and evenness at high speed Good bobbins formation. Adjustable suction distribution according to processed materials Mechanical innovations for a great reliability. Technical specifications * Processed materialsWool, long staple chemical fibres, blends FeedingCreel for cans of Ø 400 to 800mm single or double end Number of bobbins12, 16, 20 or 24 PitchFMV 41: 420mm FMV 42: 450mm Rovings per bobbin2 TubesFMV 41: length: 300mm - Ø 70mm FMV 42: length: 330mm - Ø 70mm Bobbin diameterMaxi 300mm Bobbin weightFMV 41: up to 4.5kg according to material FMV 42: from 5 to 6kg according to material Bobbin ticketingAutomatic Drafting system typeInterchangeable A: long - wide apron and 3 barrels B: short - double apron C: short - wide apron and 2 barrels Maximal loadA: 8.5 to 16ktex according to material B: 7.5 to 14ktex according to material C: 5 to 9ktex according to material Doubling1 or 2 Feed cylinder diameter40mm Draft cylinder diameter25 and 50 mm Pressure on draft diameter70mm Pressure cylinder cylinders80daN (env. 80kg) with pneumatic jack Total nipA: 205 - 260mm B: 145 - 260mm C: 130 - 260mm Mini distance between draft cyl. and apron31mm Draft range7.2 à 20.7 (by gear box) Weight of the delivery rovingA:Nm0.66-5 B:Nm1.5-6 C:Nm1.5-6
