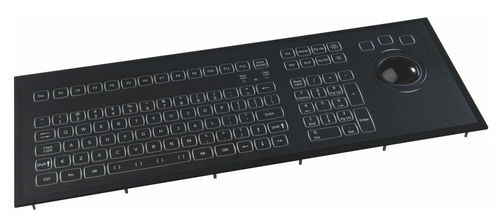

Panel-mount keyboard KSML106-MC1 series

with mechanical keys106-keychemical

Certificate of Conformity fully compliant with IEC60945 IP65 sealed keyboard Multifunctional layout with separate numeric-, function- and control key pads High brightness LED's with fibre optics Illumination of the key legends and contour, the trackball contour and even customer logo's or trademarks Two dedicated keys for up/down dimming Low power LED's warrant for a long life No external power supply necessary, keyboard port power sufficient The illumination intensity is dimmable Intelligent intensity setting of "Numlock" and "Capslock" LEDS White backlighting as standard, other colours on request General technical specifications Sealing : IP65 sealed Keys : 106 short travel switches, tactile feel switches Key travel / force : 0,3 mm travel and 2,55 N operating force Pointing Device : 50 mm trackball, black epoxy resin ball Operating temp. : 0°C to +60°C Power requirements : directly from PS/2 or USB port Front layer : Black polyester front layer with embossed keys, scratch and chemical resistant
