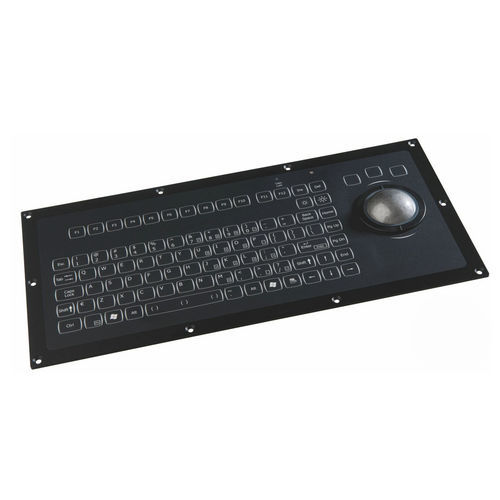

Panel-mount keyboard KSML92-MC1 series

with mechanical keys92-keywith trackball

Certificate of Conformity fully compliant with IEC60945 IP67 sealing keyboard Compact layout with integrated numpad With 50 mm industrial laser trackball with removable ball High brightness LED's with fibre optics Illumination of the key legends and contour, the trackball contour and even customer logo's or trademarks Two dedicated keys for up/down dimming Low power LED's warrant for a long life No external power supply needed for the backlight The illumination intensity is dimmable Intelligent intensity setting of "Numlock" and "Capslock" LEDS White backlighting as standard, other colours on request General keyboard specifications Sealing : IP67 sealed Keys : 92 short travel switches, tactile feel switches Key travel / force : 0,3 mm travel and 2,55 N operating force Pointing Device : 50 mm optical trackball, epoxy resin ball Output : 1,6 meter PS/2 or USB cable(s) Power requirements : directly from PS/2 or USB port Operating temp. : 0°C to +60°C Front layer : Black polyester front layer with embossed keys, scratch and chemical resistant
