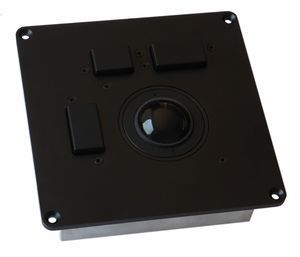

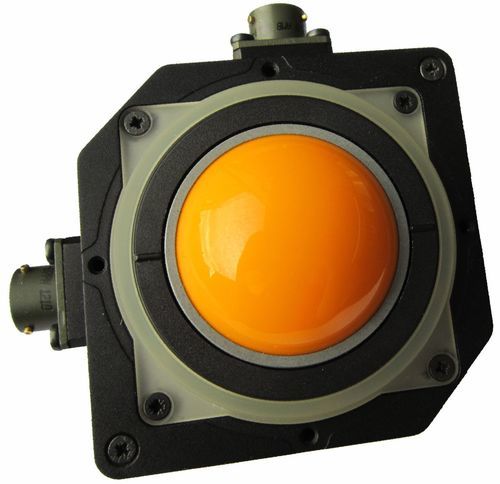

Mechanical trackball F50

panel-mount2 inch (50 mm)waterproof

Product name
Military trackball module F50 50 mm IP65 MIL-STD-461F/DO-160F/MIL-STD-810E

Description

• IP65 sealed housing for dust and water resistance
• Complies with MIL-STD-461F, DO-160F and MIL-STD-810E where applicable
• CCL patented anti-vibration technology
• Removable ball retention ring for easy maintenance (multiple styles)
• Optional HALO illumination for low-light operation (multiple colours)
• Switch inputs for left, middle and right switches; configurable with 3 integrated push button switches
• Various ball and retention ring colours to match customer schemes
• Output options: TTL Quadrature, PS/2, USB or custom serial
• Custom module layouts available with alternative mounting hole locations and switch configurations

Technical specifications

• Model / product code: F50
• Ball diameter: 50 mm
• Ingress protection: IP65
• Standards: MIL-STD-461F, DO-160F, MIL-STD-810E (as applicable)
• Anti-vibration: CCL patented technology
• Retention: Removable ball retention ring (multiple styles)
• Illumination: Optional HALO illumination (multiple colours)
• Switches: Supports left, middle and right switch inputs; can include 3 integrated push button switches
• Outputs: TTL Quadrature, PS/2, USB or custom Serial
• Customization: Various ball/retention ring colours and custom module/layout options available
