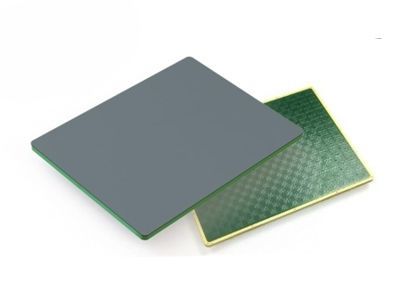

OEM touchpad TPM Series

PETglasswith sealed box

Product description
The TPM Series 3" touchpad module TPM-8605x3 is a mutual-capacitance, solid-state input device designed for OEM panel integration. It provides X/Y cursor control with plug-and-play multi-finger gesture support and is optimised for panel-mounted keyboards and operator consoles where reliable, low-maintenance pointing is required.

Key features

• 3" active-area touchpad module (TPM-8605x3)
• Mutual-capacitance capacitive sensing — solid-state (no moving parts)
• Glass or polyester overlay options for durability and feel
• Plug-and-play multi-finger gesture support
• Outputs: USB and PS/2 (auto-select)
• Left, middle and right switch input compatibility
• Customer-defined environmental sealing options
• Custom connector options available for OEM integration

Technical specifications

• Series: TPM Series
• Typical product code: TPM-8605x3
• Active area / nominal size: 3" touchpad module
• Sensing technology: mutual-capacitance (capacitive), solid-state
• Gesture support: multi-finger gestures (plug-and-play)
• Outputs: USB and PS/2 (auto-select)
• Switch inputs: left, middle and right switch input feature
• Overlay options: glass or polyester
• Environmental sealing: customer-defined sealing options
• Mechanical integration: designed for panel mounting in OEM keyboards and consoles
• Connectivity: custom connector options available
• Documentation: technical datasheet available (PDF, ~1258KB)
