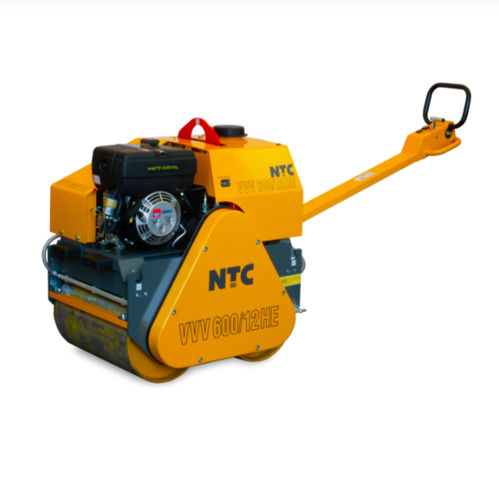

Vibrating road roller VVV 600/12HE

vibrating road roller
vibrating road roller
vibrating road roller
vibrating road roller
vibrating road roller
Add to favorites
Compare this product


Operating weight

580 kg
(1,278.7 lb)

Motor power

3.4 kW
(4.62 hp)


Walk-behind rollers STANDARD are the best machines for ensuring a smooth surface in wide range of applications. Two smooth working drums ensure a perfect surface of the compacted layer in the case of asphalt and soil compaction. These machines are equipped with a central non-directed exciter, which transmits vibrations through the frame and drums directly to the compacted material without loss of compaction performance. Operational parameters Drums width 600 mm Drums diameter 372 mm Centrifugal force 12 kN Frequency 60 Hz Forward speed 0-5 km/hod Reverse speed 0-2 km/hod Gradeability 20 ° Left overlap 100 mm Right overlap 30 mm Engine Maker and type Hatz 1 B 20 Electric start Yes Fuel Diesel Cooling Air Emission stage EU Stage V Operational fluids Water tank capacity 30 l Working dimensions Lenght 2270 mm Width 730 mm Height 1100 mm Transport dimensions Lenght 1085 mm Width 730 mm Height 1880 mm


No catalogs are available for this product.

See all of NTC‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
