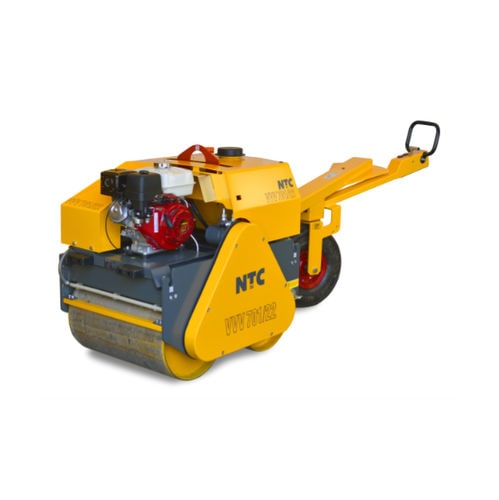

Vibrating road roller VVV 701/22HE

vibrating road roller
vibrating road roller
vibrating road roller
vibrating road roller
vibrating road roller
Add to favorites
Compare this product


Operating weight

1,025 kg
(2,259.7 lb)

Motor power

5 kW
(6.8 hp)


Walk-behind vibratory rollers CONTROL are focused on a high standard of mobility and ease of use even with a heavy weight of the machine. Two smooth working drums in combination with the steering wheels make these machines a great universals in use. Easier handling supports the operator self-confidence and it results in higher work efficiency. Operational parameters Drums width 700 mm Drums diameter 452 mm Centrifugal force 22 kN Frequency 55 Hz Forward speed 0-5 km/hod Reverse speed 0-2 km/hod Turning radius 4 m Gradeability 20 ° Left overlap 100 mm Right overlap 30 mm Engine Maker and type Hatz 1 B 30 Electric start Yes Fuel Diesel Cooling Air Emission stage EU Stage V Operational fluids Water tank capacity 50 l Working dimensions Lenght 2880 mm Width 830 mm Height 1100 mm Transport dimensions Lenght 1970 mm Width 830 mm Height 2300 mm
