Solid batch blender Ribocone

resinpowderfor the plastics industry

Overview
Ribocone is a vertical conical blender and dryer by NTE Process (powered by Okawara MFG Ltd) designed to blend and dry materials uniformly under controlled temperature and vacuum. The unit integrates a thermal jacket for heating or cooling and supports operation up to 350°C with available high‑vacuum configurations.

Functions
Ribocone is a multi‑purpose process machine suitable for blending, drying, cooling, vacuum drying, combined filtration and drying, and thermal treatment for microbial reduction or chemical reactions.

Design and key components

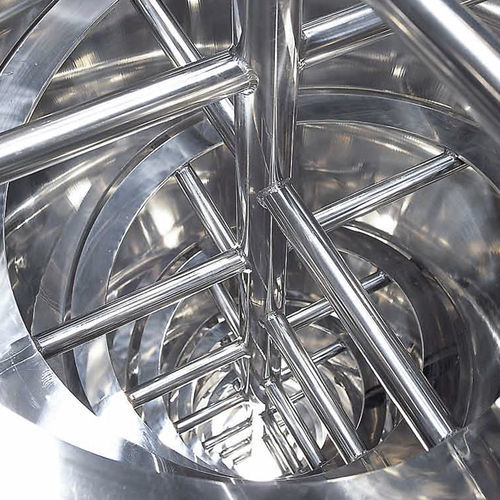

The helical stirrer (Ribbon) combined with engineered vortex breakers ensures thorough product circulation and uniform processing. A rotating conical reel (Ribbon) lifts product from bottom to top to promote mixing and heat transfer. The motor coupling is located outside the drying tank for contamination‑free processing and easier maintenance. A full‑through bottom (foot) valve enables complete discharge without dead zones.

Advantages

• No product contamination due to external motor coupling
• Low residence time on hot walls to minimise thermal degradation
• Fast blending and drying through active product circulation
• Uniform product temperature and moisture distribution
• Complete discharge from the cone bottom
• Available in high‑vacuum versions

Applications

• Lithium Nickel Manganese Cobalt Oxide (NMC), Lithium Iron Phosphate (LFP), carbon and graphite
• Lithium and lithium hydroxide
• Ceramics
• Flavourings and additives
• Animal feed
• Resin powders
• Materials for the electronics industry
• Polymers
• PVC and additives
• Organic minerals

Characteristics / technical specifications

• Type: Vertical conical blender and dryer (Ribocone)
• Manufacturer / brand association: NTE Process (powered by Okawara MFG Ltd)
• Functions: blending, drying, cooling, vacuum drying, filtration and combined drying, thermal treatment
• Agitation: Helical stirrer (Ribbon) with vortex breakers
• Rotor: Rotating conical reel (Ribbon) for product circulation
• Thermal control: Thermal jacket for heating and cooling
• Temperature capability: Heating up to 350°C
• Vacuum capability: High‑vacuum versions available
• Sanitary feature: Motor coupling located outside the tank for contamination‑free processing
• Discharge: Full‑through bottom (foot) valve to prevent dead zones and residues
