Pumping skid M535

loading meteringfor chemicals

Product overview
The NTE Process oil and liquid injection skids are engineered to deliver precise dosing and injection of oils and liquids for process and lubrication applications across multiple industrial sectors. Units are fully engineered to customer specifications and can be adapted for integration with IBCs and bin/silo mixers.

Types

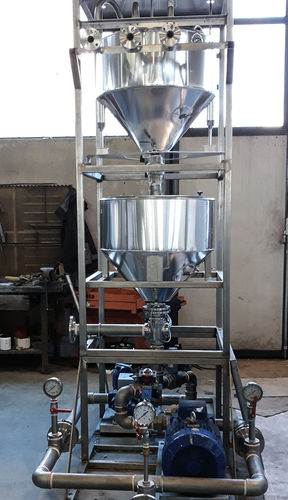

• M535 — weighed and pressurized pneumatic dosing system, suitable where gear pumps are unsuitable due to high pressure, contamination risk or premature wear.
• M538 — double weighing and metering hopper combined with one or two oil injection pumps for continuous or batch feeding.

Operation and mixing
The injection skids can be combined with NTE mixers to ensure uniform distribution. Typical mixers used are the Air Mixer M244 and the Jetmixer M531. When paired with the Liquid Injection Skid M535, the system can inject up to 6 liquids simultaneously, reducing nozzle dust accumulation and avoiding the droplet effect common with conventional injection systems.

Applications and industries

• Food industry: product humidification to control dust, improve flowability and introduce oils or flavours.
• Chemical industry: addition of fragrances, perfumes or liquid additives for binders, coating or granulation.
• Rubber and tyre sector: injection of oils and silanes for accurate dosing, dispersion and distribution inside Banbury mixers.
• Other applications: configured for use with IBCs and bin/silo mixers and adaptable to numerous industrial processes.

Technical features / specifications

• Product family: Oil & Liquid Injection Skid
• Available models: M535, M538
• M535: weighed, pressurized pneumatic dosing system
• M538: double weighing and metering hopper with one or two oil injection pumps
• Injection capability: up to 6 liquids simultaneously (with appropriate mixer integration)
• Commonly used mixers: Air Mixer M244, Jetmixer M531
• Primary uses: process dosing, lubrication, humidification, flavour/oil addition, fragrance addition, binder/coating/granulation additives, oil/silane injection for rubber mixing
• Engineering: units are custom-engineered to customer requirements
