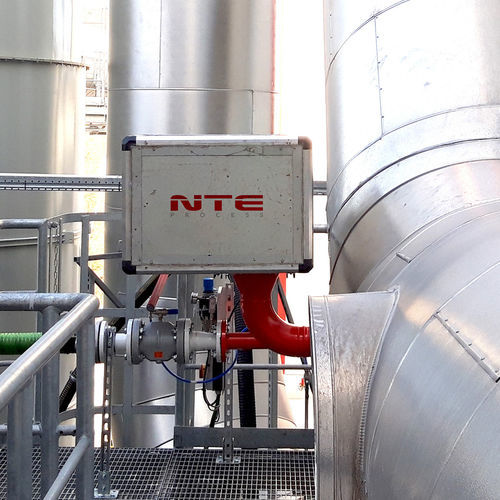

Activated carbon powder injector Eco-Lance®

Product overview
For the dry injection of sorbents and activated carbon, NTE Process has patented Eco-Lance®: an air‑blown injection technology that uses a high‑capacity blower to mix sorbents with hot flue gases under controlled turbulence. Eco-Lance® injectors enhance blending and dispersion of sorbents inside the flue gas duct, improving pollutant/sorbent reaction efficiency and reducing sorbent consumption and maintenance compared with traditional immersed‑lance systems. The solution delivers immediate operating savings and a measurable ROI.

Main advantages

• Reduction of pollutant levels (SO2, SO3, HCl, Hg) including retrofit on existing plants.
• Up to 50% reduction in sorbent usage versus traditional injection lances.
• Variable performance and flexibility via a fan with inverter to adapt charge air to operating load.
• Improved dispersion of major dry sorbents: hydrated lime, sodium bicarbonate, trona and activated carbon.

Applicable sectors
Energy generation; biomass plants; glass production; cement plants; foundries; coal‑fired furnaces and boilers.

Technical characteristics / specifications

• Technology: dry injection of sorbents and activated carbon (Eco-Lance® patented).
• Manufacturer: NTE Process.
• Primary function: blend sorbents with hot flue gases using a powerful blower to generate adequate turbulence for enhanced reaction.
• Performance: improved blending and dispersion in flue ducts, reduced sorbent consumption and maintenance.
• Targeted pollutants: SO2, SO3, HCl, Hg.
• Compatible sorbents: hydrated lime, sodium bicarbonate, trona, activated carbon.
• Control: fan equipped with inverter for variable charge air according to load.
• Benefits: up to 50% sorbent savings versus traditional lances; simple retrofit to existing systems; measurable ROI.
• Typical industries: power generation, biomass, glass, cement, foundry, coal‑fired boilers/furnaces.
