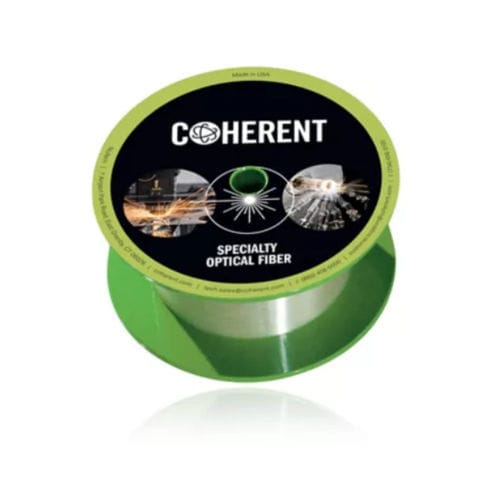

Silica fiber PM850G-80/170-5

spoolcontinuous

Coherent 850 nm PANDA-style PM Gyroscope fibers have extremely high birefringence and exceptionally tight dimensional specifications, critical for manufacturing high precision, high-performance gyro-coils. High consistency and extreme end-to-end control of optical properties provide particular advantage in this application by reducing fiber generated signal artifacts. The intrinsically high level of radiation resistance allows operation for extended periods of time on low earth orbits, near and deep space, and applications where exposure to man-made radiation is expected. The PANDA-style configuration is preferred over bow-tie or elliptical clad designs because of its advantages in process scalability and product uniformity. These fibers are offered in industry standard specifications and Coherent high performance (HP) versions optimized for exceptional splicability and offering the tightest tolerance specifications available. Applications Fiber optic gyroscopes (FOGs) Fiber optic voltage and current sensors Laser pigtailing Small form factor couplers Specialty sensors Features PANDA-style PM - Superior performance, intrinsically good radiation performance Extremely high birefringence - Less gyroscope drift Bend insensitive - Smaller diameter coils possible Excellent crosstalk stability over temperature range - Minimize Shupe (insensitive to temperature drift) effects HP version with best specifications available - Improved repeatability, coil winding accuracy and splicability RoHS compliant
