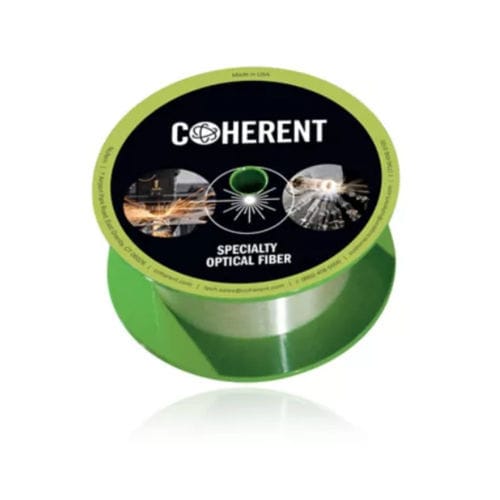

Polyimide fiber PM1300G-80/170-5

silicaepoxyspool

Coherent 1300 nm PANDA-style PM Gyroscope fibers have extremely high birefringence and exceptionally tight dimensional specifications, critical for manufacturing high precision, high-performance gyro-coils. The intrinsically high level of radiation resistance allows operation for extended periods of time on low Earth orbits, near and deep space, and applications where exposure to man-made radiation is expected. Applications Fiber optic gyroscopes (FOGs) Fiber optic voltage and current sensors Laser pigtailing Small form factor couplers Specialty sensors Features and Benefits PANDA-style PM - Superior performance Extremely high birefringence - Less gyroscope drift Bend insensitive - Smaller diameter coils possible Excellent crosstalk stability over temperature range - Minimize Shupe effects HP version with best specifications available - Improved repeatability and splicability RoHS compliant Optical Specifications Operating Wavelength - 1280–1340 nm Core NA - 0.18 Mode Field Diameter (Gaussian) - 6.0 ± 0.5 µm @ 1300 nm Cutoff - 1210 ± 60 nm Core Attenuation - ≤ 2.0 dB/km @ 1300 nm Geometrical & Mechanical Specifications Cladding Diameter - 80.0 ± 1.0 µm Coating Diameter - 170.0 ± 5.0 µm Prooftest Level - ≥ 100 kpsi (0.7 GN/m²)
