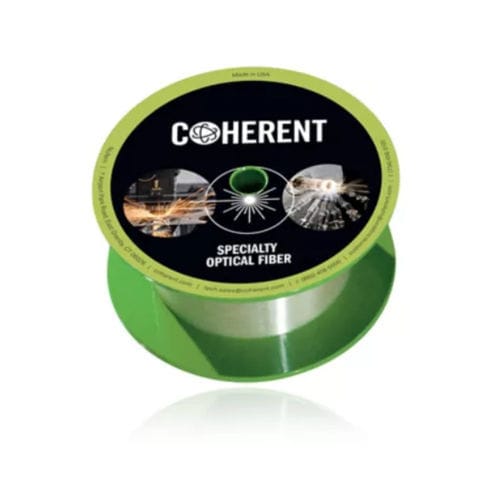

Silica fiber BD-S600/660/720-STN

nylonspoolcontinuous

Coherent beam delivery NuBEAM specialty multimode step-index fibers are designed for compatibility with the majority of fiber interconnect systems and diode laser power delivery systems. Coherent has applied its unique manufacturing facility and capabilities to this product area and has established leading optical, mechanical and geometric tolerances. This fiber features a 600 micron core diameter, 0.22 NA and 720 micron clad diameter with a silicone coating and a transparent nylon buffer. This product requires a purchase of a minimum quantity of : 7 Optical Specifications Operating Wavelength - 700nm to 2200nm Core NA - 0.22 ± 0.02 Geometrical & Mechanical Specifications Core Diameter - 612µm ± 12µm Long Term Bend Radius - 110mm to 0mm Prooftest Level - 100kpsi to 120kpsi First Buffer Diameter - 900µm ± 25µm First Clad Diameter - 680µm ± 20µm Second Buffer Diameter - 1100µm ± 55µm Second Clad Diameter - 735µm ± 15µm Short Term Bend Radius - 37mm to 0mm
