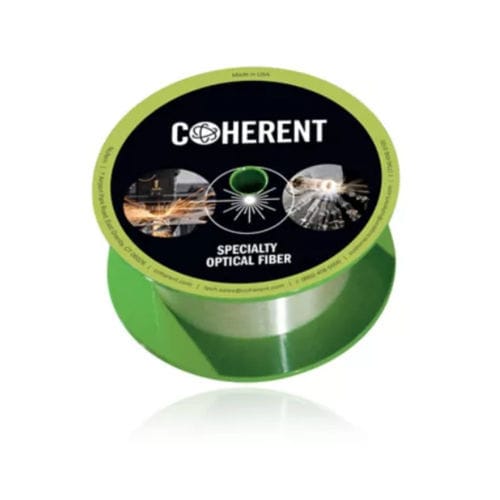

Silica fiber MM-S600/660-22FA

spoolcladding

Coherent specialty multimode step-index fibers are designed for compatibility with the majority of fiber-coupled, bar and stack diode-laser packages and support the diode laser power delivery market. This fiber features a 600 micron core diameter with a 0.22 NA and a 660 micron clad diameter with Coherent proprietary NuCoat-FA, a low refractive index fluoroacryalte coating, for added power confinement. All fiber is proof tested to > 100 kpsi to ensure long term reliability. Other fiber diameters are available upon request. This product requires a purchase of a minimum quantity of : 11 Optical Specifications Operating Wavelength - 700nm to 2200nm Core NA - 0.22 ± 0.02 Cladding NA - 0.46 to 0 Geometrical & Mechanical Specifications Core Diameter - 600µm ± 12µm Long Term Bend Radius - 100mm to 0mm Prooftest Level - 100kpsi to 120kpsi Short Term Bend Radius - 34mm to 0mm Cladding Diameter - 660µm ± 12µm Coating Diameter - 875µm ± 30µm Core Clad Offset - 0µm to 7µm
