positive displacement flow meter / for fuel / flange
K33, K44

{{requestButtons}}

Characteristics

  • Technology:

    positive displacement

  • Fluid:

    for fuel

  • Other characteristics:

    flange

  • Process pressure:

    Min.: 0 bar (0 psi)

    Max.: 10 bar (145.04 psi)

  • Volumetric flow rate:

    Min.: 20 l/min (5.3 us gal/min)

    Max.: 120 l/min (31.7 us gal/min)

Description

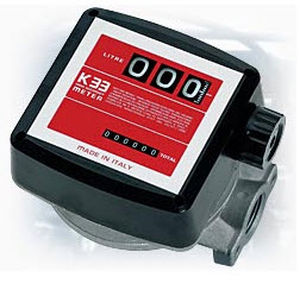

The K33 and K44 nutating disk meters measure the exact quantity of a lubricant or fuel. They are designed to provide inexpensive, reliable use and calibration solutions in the workplace. For fuel management system connections, the Pulser model comes with a pulse emitter.

These products can function by gravity due to a reduction in flow resistance. The available range is 20 to 120l/min and the precision after calibration is within 1% of the flow range. Maximum operating pressure and bursting pressure is 10 and 30bar respectively. The K33 model has three-digit subtotals, six-digit totals and a maximum of 999l. Total readouts cannot be set to zero but subtotals can. The K44 model has four-digit subtotals, seven-digit totals and a maximum of 9,999l. Design elements include a polybutylene nutating disk and aluminum metering chamber. Flanged coupling is available from both sides.
