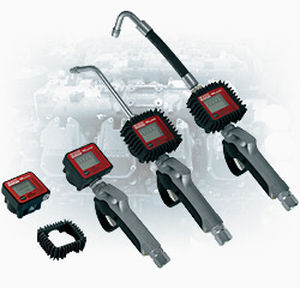

Gear flow meter K400

for oilinsertionfor dispensing nozzles

The NUMAK K400 is basically a Nozzle meter for oil and diesel fitted with a balanced valve to reduce trigger pressure. To suit specific requirements, it can also be integrated with different ends. The unit comes in a two version varying in outlet type (rigid & flex). The unit operates with standard AAA size batteries, bursting pressure of 200 bar, working pressure 70 bar and a flow rate up to 30 l/min. It facilitates easy inspection and maintenance, promises an accuracy of +/- 0.5 % and a repeatability of 0.2 %. The K400 can be integrated with nozzle Easy Oil to create a handy, ergonomic instrument for controlling and managing oil delivery. The outer body is made of aluminium to withstand high pressure. It accommodates a nozzle meter for oil between a range of 1 to 30 l/min, and can handle a fluid viscosity between 2 to 2000 CST. Additionally, the functions are controlled by an electronic card and battery powered microprocessor. The card aids in managing display and meter calibration.
