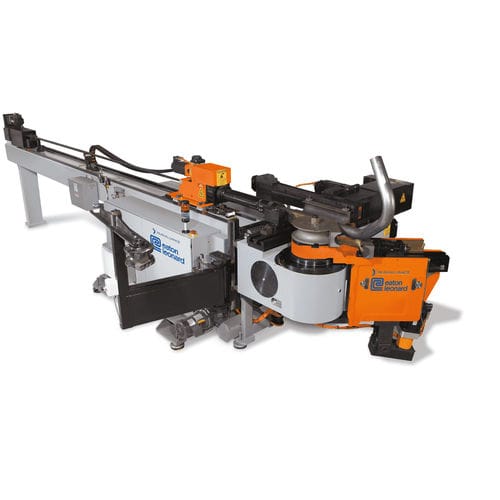

Electric bender VB seriestubeautomaticCNC
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Product handled
- tube
- Control
- automatic, CNC
- Other characteristics
- automated loading/unloading, conventional
- Bending capacity
Max.: 152 mm
(6 in)Min.: 25 mm
(1 in)- Bending radius
260 mm, 305 mm, 457 mm
(10.24 in, 12.01 in, 17.99 in)- Bending length
2,000 mm, 3,000 mm, 3,660 mm
(79 in, 118 in, 144 in)
Description
Eaton Leonard’s latest CNC tube bender in the all-electric family enables bending of high-strength tubes up to 90 mm (3.50”) capacity.
All-electric design ensures maximum performance in a clean, quiet package. In addition, electric operation offers energy savings compared to conventional hydraulically- operated tube benders.
Features and Options
Servo-controlled pressure die provides automatic adjustment and reduces tube marking
Position-controlled pressure die assist for precise process control and repeatability for multi-radius, multi-plane and compound bend applications
Quick-change single-piece collet assemblies for easy changeover
Semiautomatic and fully automatic loaders
