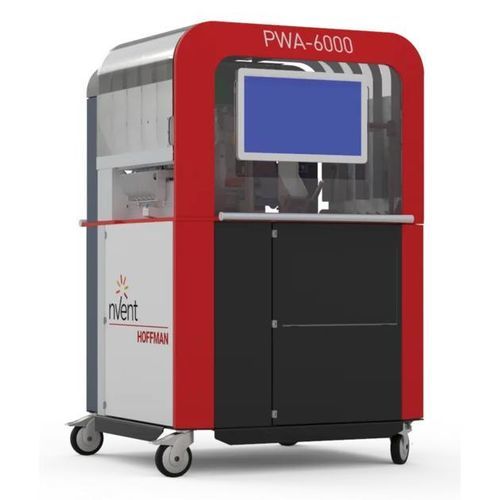

Processing machine PWA6000

Overview
Wire Processing Center optimizes wire production, reducing processing time by up to 75%. The PWA6000 fully automates cutting to length, stripping, crimping, marking and bundling of wires. The machine features internal automated wire feeding with 12 spools (4 external and 8 internal) and supports an external storage accessory to feed additional wires without using internal spools, reducing spool change time. The machine places ferrules on both ends and marks each end. Finished wires are bundled on adhesive tape in a predefined order to optimize order picking and downstream assembly. The automated prefabrication process is intended to optimize panel wiring and reduce costs.

Key Features

• Human Machine Interface with 21.5-inch touchscreen
• Automated wire feeding with 12 spools (4 external and 8 internal)
• External accessory for storage of additional wires to feed the machine and reduce switching times
• Electropneumatic stripper and crimping with 5-way magazine for processing insulated wire end ferrules on a reel
• Crimping length adjustable to 8 mm or 10 mm
• Finished wires can include ferrules on both ends without manual intervention
• Wire marking system with direct printing on each end; marked with blue ink suitable for most wire colours
• Processable wire cross-section from 0.5 mm² up to 2.5 mm² (AWG 20–14) without set-up times
• Production speed: approximately 120 wires/hour including both wire ends
• Machine software includes Personal Wiring Suit as an intuitive programming system for the PWA6000
• External accessory for storage and transport of finished wires to the panel shop; accessory includes a screen to visualise panel wiring (source, target and routing)
• Interfaces with eCAD systems (IGE XAO, ePlan ProPanel, ZUKEN E3, WS-CAD or similar) or CSV/Excel files

Table - Catalog / Wire Size
Catalog Number: PWA6000
Wire Size (Imperial): #20 - #14
Wire Size (Metric): 0.5 mm² min

Applications / Benefits

• Reduces wire processing time and manual labour for panel wiring
• Ensures repeatable, consistent quality of prefabricated wires
• Bundling on adhesive tape in predefined order to optimize order picking and downstream assembly
• Reduces overall panel wiring costs through automation and process optimization

Technical specifications

• Model: PWA6000
• HMI: 21.5-inch touchscreen
• Wire feeding: internal automated feeding with 12 spools (4 external, 8 internal); external feed/storage accessory supported
• Wire processing operations: cutting to length, stripping, crimping, marking, bundling
• Crimping: electropneumatic crimping with 5-way magazine; crimping length adjustable to 8 mm or 10 mm
• Ferrules: placement on both ends supported; ferrules optional
• Wire marking: direct printing on wire (blue ink marking suitable for most wire colours)
• Processable wire cross-section: 0.5 mm² up to 2.5 mm² (AWG 20–14)
• Typical speed: ~120 wires/hour (including both wire ends)
• Software: includes Personal Wiring Suit; supports import from eCAD systems or CSV/Excel
• Interfaces: IGE XAO, ePlan ProPanel, ZUKEN E3, WS-CAD or similar, or CSV
• Power rating: Rated voltage 110–240 V 1~ 50/60 Hz; Rated current: 16 A
• Compressed air: 6–8 bar; suction capacity: 300 l/min
• Footprint / Machine dimensions: width 1050 mm x depth 1150 mm
• Finished-wire handling: bundling on adhesive tape in predefined order; optional external accessory to store and transport finished wires to panel shop
• Additional capabilities: places ferrules on both sides, can cut insulation for removal, accepts wires from different cable batch containers
