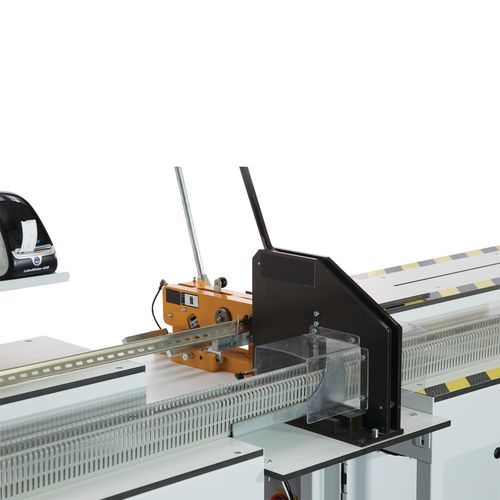

Guillotine cutting machine NC-Cut

for PVCfor metalfor copper

Product overview
The NC-Cut is a semi-automated cutting machine designed for precise trimming of DIN rails, cable ducts and compatible busbars to streamline panel assembly workflows and reduce material waste. The system imports existing panel layout files to generate a cut list and guide operators through the cutting sequence.

Applications

• Electrical panel and control cabinet production
• Panel wiring shops and distribution board manufacturers
• Workshops requiring repeatable, high-accuracy cuts for mass assembly

Features

• Motorized stops feed material to the shears, eliminating manual measuring
• High-quality shears provide accurate cuts and extended tool life
• Each trimmed part receives a printed label for correct placement on the mounting panel
• Trimming length (max / min): 2,200 mm / 140 mm (86.6 in / 5.5 in)
• Machine dimensions (H x W x D) assembled, without vibration mounts: 860 x 4,220 x 675 mm (33.8 x 166 x 26.5 in)
• Vibration mount height / adjustment: 40 mm / 0–20 mm (1.57 in / 0–0.78 in)
• Repeat accuracy: 0.5 mm
• Supports cable ducts up to 125 mm (4.9 in) width
• Supports DIN rail types: NS 15, NS 35/7.5, NS 35/15
• Supports busbar type: NLS-CU 3/10
• Electrical supply: 110–240 V, single phase, 50/60 Hz

Specifications

• Catalog number / Model: NC-Cut
• Trimming length (max / min): 2,200 mm / 140 mm (86.6 in / 5.5 in)
• Machine dimensions (H x W x D): 860 x 4,220 x 675 mm (33.8 x 166 x 26.5 in)
• Vibration mount height / adjustment: 40 mm / 0–20 mm (1.57 in / 0–0.78 in)
• Repeat accuracy: 0.5 mm
• Maximum cable duct width: 125 mm (4.9 in)
• Supported DIN rail types: NS 15, NS 35/7.5, NS 35/15
• Supported busbar type: NLS-CU 3/10
• Each trimmed part labeled with printed label for panel placement
• Motorized stops and precision shears for automated accurate cutting
• Rated voltage: 110–240 V, single phase, 50/60 Hz
