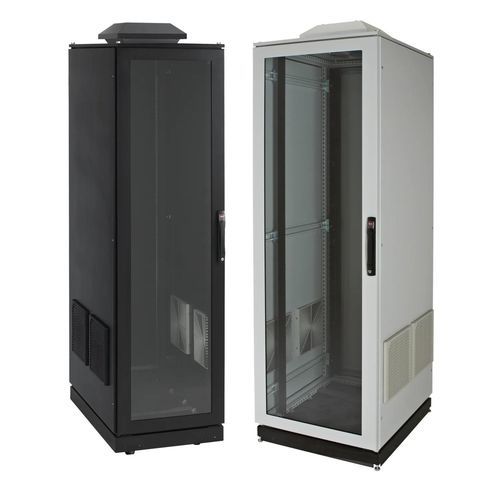

Voice-data-video (VDV) box server cabinet ProLine

steelfor 19'' racksfloor-standing

Product Overview
ProLine Voice/Data and Server Cabinets Type 1 with fan and filter are designed for industrial environments such as factory floors, warehouses and remote sites where filtered ambient air is required to protect network and server equipment.

Features

• Gasketed covers and intake air filters reduce dust and contaminants
• Removable filters for cleaning and maintenance to sustain airflow performance
• Fan-and-filter package delivers up to 600 CFM of filtered air for equipment cooling
• Three-point locking handles on doors for controlled access; two keys included
• Rack angles infinitely adjustable front-to-rear for flexible equipment positioning
• Optional mobile base with casters and levelers for positioning and installation
• Mobile base includes casters, levelers and gland plate
• Levelers and anti-tip bracket secure the cabinet to the floor

Industry Standards
UL508A Listed; Type 1; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 1; File No. E61997
EIA RS-310-D

Specifications / Technical characteristics

• Material: Mild Steel
• Finish: Powder Coated

Representative models

• PSC20610BFP | 15337 | 86.74in | 23.94in | 39.34in | Jet Black | RAL 9005 | 16ga | Square | 42U | Server
• PDCP2078BFP | 15334 | 86.74in | 27.87in | 31.46in | Jet Black | RAL 9005 | 16ga | Tapped | 42U | Voice/Data
• PFD20610B | 15373 | 78.7in | 23.6in | 39.4in | Jet Black | RAL 9005 | 12ga | | |
• PSS2010FPB | 15387 | 78.74in | 39.37in | | Jet Black | RAL 9005 | 14ga | | |
• PBMG78B | 15395 | 27.56in | 31.5in | | Jet Black | RAL 9005 | 12ga | | |
• PPTHP78G | 15573 | 27.56in | 31.5in | | Light Gray | RAL 7035 | 16ga | | |
