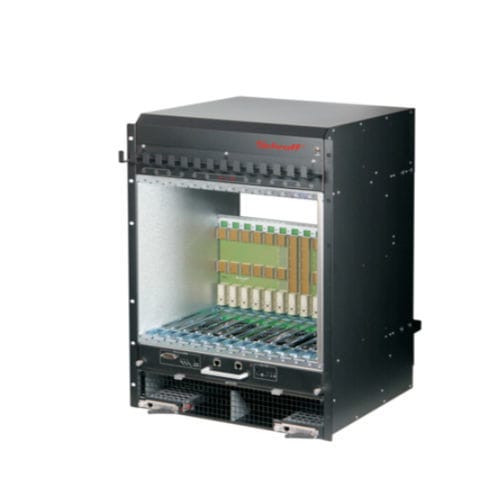

Conforms to AdvancedTCA Standard PICMG 3.0 rev.3.0
Input voltage -48 VDC/-60 VDC, two redundant power entry modules (PEM)
2 redundant hot‐swap fan trays in push‐pull configuration, airflow from bottom front to top rear
450 W cooling capacity per slot at an ambient temperature of 55 °C
Prepared for 2 x SCHROFF shelf managers with Pigeon Point ShMM 700
Air filter access from front
UL recognized, E229721 type T08
PRODUCT ATTRIBUTES
Product Type: System
Number of Slots: 14
Backplane Type: Dual Star, Bussed IPMB
Data Transfer: 40 GbE
Power per Slot: 450 W
Input Voltage DC: −48 V; −60 V
Airflow Direction: Front to Rear
Rack Height: 14 U
Power Supply Type: (2) DC PEM
Power Supply Included: Yes
Rear I/O: Yes
Complies With: PICMG 3.0 R3.0
Depth: 383 mm
