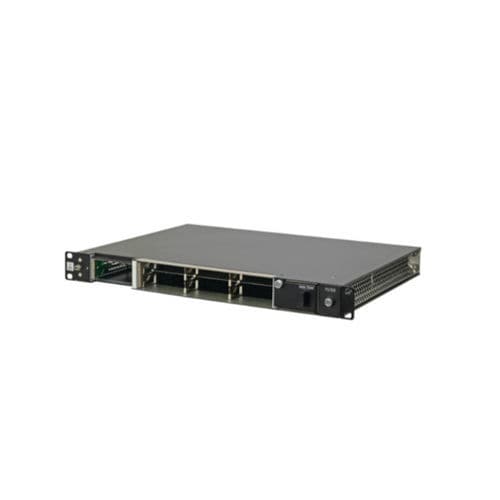

Rack-mount chassis 11850-02419"1U84 HP
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Mounting
- rack-mount, 19"
- Size
- 1U, 84 HP
- Extension slots
- 6 slots
- Other characteristics
- micro TCA
Description
In accordance with PICMG MTCA.0 R1.0 specification
AC mains input (100 ... 240 VAC) on rear of case, embedded 400 W PSU, power management (PM EMMC) on backplane
Hot-swap fan module with cooling unit manager (CU EMMC), airflow from right to left
Air filter access from front
PRODUCT ATTRIBUTES
Product Type: System
Data Transfer: 40 GbE; PCIe Gen3
Power per Slot: 50 W
Input Voltage AC: 100 – 240 V
Airflow Direction: Right to Left
Power Supply Type: Open Frame
Power Supply Included: Yes
Rear I/O: No
Complies With: PICMG MTCA.0 R2.0
Depth: 301 mm
Height: 44.45 mm
ADDITIONAL PRODUCT DETAILS
1 U MicroTCA System with horizontal card cage for Single Width AdvancedMC Modules. The chassis has an AC Power input in the rear and an integrated 400 W Power Supply. The PM EMMC (Power Module Enhanced Management Controller) is installed onto the rear of the Backplane.
Modified systems available on request.
Completely assembled, wired and tested.
