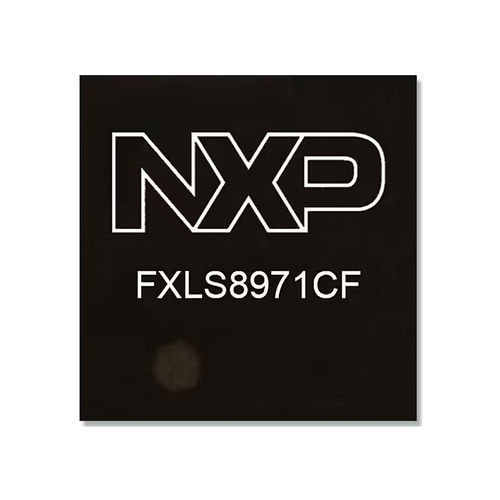

3-axis accelerometer FXLS8971CF
MEMScompactindustrial

3-axis accelerometer
3-axis accelerometer
3-axis accelerometer
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Technology
MEMS
Other characteristics
compact, industrial, digital
Frequency

Min.: 0.78 Hz

Max.: 3,200 Hz

Description

FXLS8971CF is a compact 3-axis MEMS accelerometer designed for use in a wide range of industrial and medical IOT applications that require excellent offset and sensitivity stability over temperature. The part supports both high-performance and low-power operating modes, allowing maximum flexibility to meet the resolution and power needs for various unique use cases. A number of advanced, integrated digital features enable designers to reduce the overall system power consumption and simplify host data collection. FXLS8971CF is available in a 3 mm x 3 mm x 1.25 mm 12-pin QFN package with 0.65 mm pitch and wettable flanks. The device is qualified to industrial standards over the extended –40 °C to 105 °C temperature range. The combination of sensor performance, system power-saving features, and extended over-temperature-range performance makes FXLS8971CF an ideal accelerometer for motion and position sensing/inclinometer applications in the IoT and industrial segments. Features Full Scale Range ±2 g / ±4 g / ±8 g / ±16 g Resolution 12 bit Compact Package 3 mm x 3 mm x 1.25 mm package 12-pin QFN 0.65 mm pitch and wettable flanks Low-Power ≤ 1 μA IDD for ODRs up to 6.25 Hz < 4 μA IDD for ODRs up to 50 Hz Ultra-Low Power Wake Up Dedicated ultra-low-power motion-detection mode with a single wire interface option Optimized Temperature Performance Post-board mount zero-g offset and TCO performance of ±30 mg (typ) and ±0.25 mg/°C (typ), respectively Selectable Output Data Rate Communication Interface I2C up to 1 MHz and SPI up to 4 MHz
