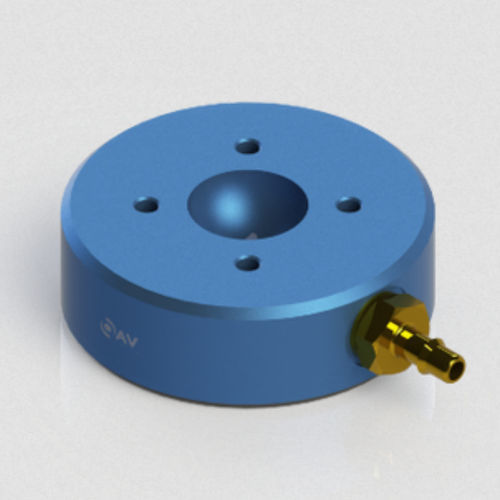

Linear bearing unit OAVR050Rflatair cushionaluminum
Add to favorites
Compare this product
Characteristics
- Type
- linear, flat, air cushion
- Material
- aluminum
- Other characteristics
- vacuum pre-loaded
- Applications
- for linear systems
- Outside diameter
50 mm
(1.97 in)
Description
Flat Round Frictionless Air Bearing. Used in both linear and rotary applications. Excellent damping capabilities and highly versatile. Easy to apply and change.
Input Pressure - 0.28 to 0.68 MPa (40 to 100 PSI)
Ideal Load - 392 N (88 lbs)
Stiffness - 60.71 N/micron (0.35 lbs/μ in)
Flow Rate - 1.2 NLPM (2.5 SCFH)
Fly Height - 5 μm
Bearing Size - 50 mm
Bearing Height - 13 mm
Bearing Weight - 61 g
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Porous Media Material - Carbon
Flatness - 0.0005 mm (0.00002 in)
Pressure Port Thread - M5 x 0.8
Catalogs
OAVR050R
1 Pages
Product Book & Design Guide
29 Pages
