Installation protective cover DFAA BKRS

RoHS 2

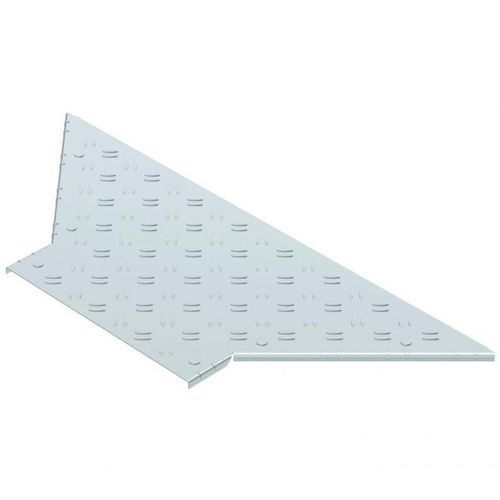

Description Unperforated cover with chequer plate for add-on tee fitting for BKRS walkable cable tray system. Suitable for indoor installation. Protects cables against damage and soiling. Pre-marked break-out openings for fastening with turn buckles. Turn buckles not included.

Product identification

• Type: DFAA BKRS 400 FS
• Item no.: 6049425
• EAN: 4012197309763
• Smallest selling unit: 1 piece

Dimensions Length: 286 mm
Width: 946 mm
Height: 16 mm
Dimension B: 400 mm

Technical data

• Wide-span version: no
• Rustproof steel, pickled: no
• Plate thickness: 2 mm
• Number of turn buckles: 0
• Material thickness: 2 mm
• Suitable for cable ladder: no
• Suitable for cable tray: yes
• Fastening type: On top
• ROHS-conformant: yes
• Surface: Strip galvanised
• Material: Steel
• Colour: zinc
• Product series: BKRS Series

Environmental Data CO2 Footprint (GWP) Cradle-to-Gate: 13,2513 kg CO2e / 1 Piece
CO2 Footprint (GWP): 13,2513 kg CO2e
Determination date of CO2 value: 2025-05-21T00:00:00.000+0200
Declared Unit: Units
Declared Unit Quantity: 1

Technical specifications

• Brand: OBO Bettermann
• Product series: BKRS Series
• Model / Type: DFAA BKRS
• Item number: 6049425
• EAN: 4012197309763
• Length: 286 mm
• Width: 946 mm
• Height: 16 mm
• Dimension B: 400 mm
• Plate thickness / Material thickness: 2 mm
• Material: Steel
• Surface: Strip galvanised
• Colour: zinc
• Suitable for cable tray: yes
• Suitable for cable ladder: no
• Fastening type: On top
• Number of turn buckles supplied: 0 (turn buckles not included)
• ROHS-conformant: yes
• Smallest selling unit: 1 piece
• CO2 Footprint (GWP) Cradle-to-Gate: 13,2513 kg CO2e / 1 Piece
