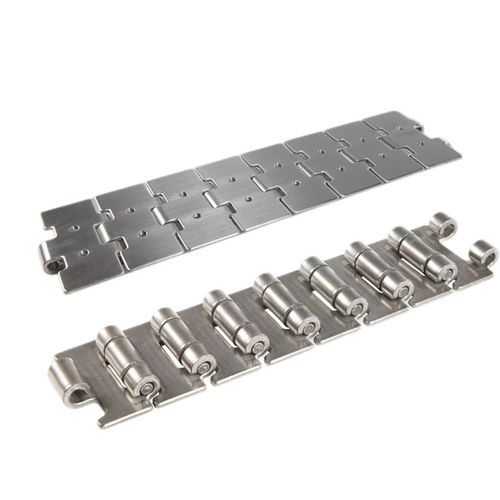

Friction hinge SS512/515

metalsteelstainless steel

There are more than 60 specifications of stainless steel flat-top chain, and its selection should be determined according to the working conditions of the conveyor The factors involved should include, but not limited to, such as the characteristics of the goods, the requirements of the goods to the environment, the loading capacity, the speed of the chain, the friction coefficient between the chain and the guide rail, the center distance between the driver and driven wheels, lubrication conditions, temperature, etc. Under good lubrication conditions, the transmission line speed of flattop chain can reach 120 m/min. The technical performance of stainless steel flat top chain mainly depends on its raw materials and technological level of manufacturing process. Different metal materials1 characteristics determine the applicable environment and working conditions of flat-top chain products. At present, there are four kinds of chain chain materials for choices: AISI 420, AISI 430, AISI 304 and Special Chromium nickel Steel. Pin materials are AISI 420, AISI 431 and AISI 304. Among them, AISI 420 chain chain with AISI 420 pin, AISI 430 and Special Chromium-nickel Steel with AISI 431 pin, AISI 304 chain chain with AISI 431 or AISI 304 pinare five assembly methods based on material matching.
