4-channel output module CT-2224

digitalModbus RTUEtherNet/IP

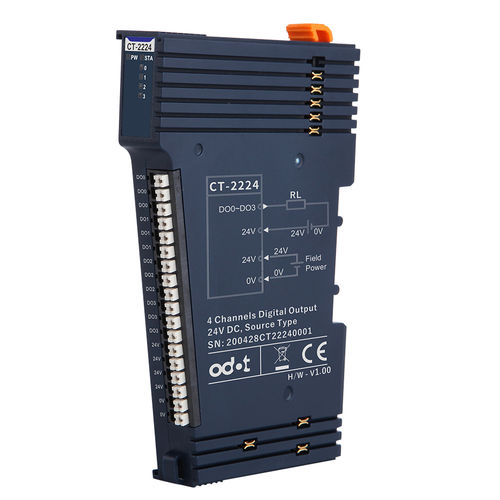

CT-2224: 4 channel digital output/24VDC/ Source type ◆the module supports 4-channel digital output, the output voltage is 24VDC and the output high level is valid. ◆the max output current of DO single channel is 3.3 A. ◆the module could drive field equipment (relay, solenoid valve, etc.) ◆the module internal bus and field output are isolated by optocoupler ◆the module carries with 4 digital output channel LED indicator ◆the module has the functions of thermal shutdown and overcurrent protection ◆the module supports short circuit protection and overload protection Power Consumption: - [email protected] Isolation: I/O to internal bus: opto-couple isolation (3KVrms) Field Power: Nominal:24Vdc, Range: 19.2～28.8VDC Wiring: I/O wiring:Max.1.5mm2(AWG 16) Mounting Type: 35mm DIN-Rail Size: - 115*14*75mm Weight: 65g Output parameters Channel Number: 4 Channels LED Indicator: 4 Channels output LED Indicator Rated Current: Typical value：2.2A Leak Current: ax. value：10uA Output Impedance: <90mΩ Output Delay: OFF to ON:Max.5us ON to OFF: Max.200us Protection Function: Over temperature turn-off: typical value 150℃ Overcurrent protection: typical value 12A
