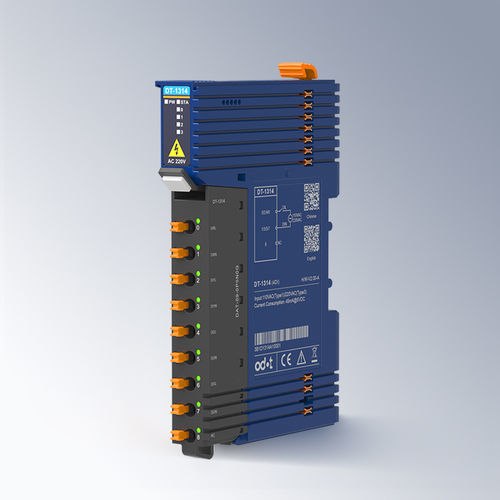

Digital input module DT-1314

4 digital inputs4-channelDIN rail

4 Channels digital input module 110 VAC/220VAC - The module supports 4 channels of digital input and 110 VAC /220VAC input. - The module can collect the digital output signal of the field equipment (dry contact or active output). - The module can be connected to 2-wire or 3-wire digital sensors. - The module has 4 independent channels and is isolated between channels. - The module supports input signal hold function, and the holding time can be set. - The module has 4 digital input channels LED indicators. - Module high speed redundant backplane bus with pluggable terminal blocks. Technical Parameters General Parameters - Current Consumption: 45mA@5VDC - Field Power: 19.2~28.8VDC (Nominal: 24VDC) - Wirring Diameter: Min.0.2mm² (AWG24), Max.1.5mm² (AWG16) - Terminal Pluggable: Support - Backplane Bus: Double bus redundancy - Installation: 35mm DIN-Rail - Dimension: 119*14*80mm - Product Certification: CE Certification Input Parameters - Number of Channels: 4 Channels input - Indicator: 4 Channels indicators - Input Characteristics: IEC 61131, Type 1@110VAC/ Type 3@220VAC - Voltage Frequency: AC (47 Hz to 63 Hz) - Rated Value: 100~240VAC - Signal “0”: 0~40VAC - Signal “1”: 74~264VAC - OVC: II - Input Delay: OFF to ON: Max.4ms, ON to OFF: Max. 10ms - Channel Isolation: Isolation Environment Parameters - Horizontal Installation Operating Temperature: -35℃~60℃ - Vertical Installation Operating Temperature: -35℃~50℃ - Storage Temperature: -40℃~85℃ - Environment Humidity: 5%~95%RH (No condensation) - Installation Altitude: <2000m - Pollution Degree: II - Protection Grade: IP20 - Mechanical Properties: Comply with IEC60068-2-6, IEC6008-2-27 - Insulation Withstand: Comply with IEC61131-2 - EMC Performance: Comply with IEC61131-2, IEC61000-4 (ESD: Contact discharge ±8kV, Air discharge ±15kV, Performance level B; SURGE: Common mode ±3kV, Performance level B; EFT: ±2kV, Performance level A)
