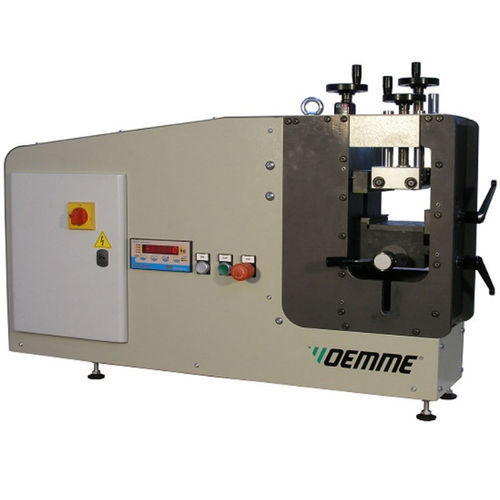

Powered shear tester device for thermal break profiles according to EN14024
Idle rollers device on bearings to keep straight the profile vertical wise according to norm EN14024. Thanks to independent height adjustment, rollers allow to keep straight any kind of profiles without mechanically damping
The loading cell detects and visualizes the maximum thrust during the stroke and allows the data downloading on external PC
Technical data
- One phase motor 230 V – 50 Hz
- Maximum load: 15000 N
- Pusher feed speed: 5 mm/min. (constant)
- Pusher stroke: approx. 6 mm (with automaticfeedback in start position)
- Test sample length: 100 mm (+/-1)
- Height of the thrust point as to the support plane: min. 6 – max 160 mm
- Profile max height : 250 mm
- Idle rollers on bearings to keep straight the profile vertical wise
- Independent adjustment through a little wheel of the straight keeping rollers
- Adjustment of the lower support plane through a little wheel equipped with counter
- Quick unlocking device of the tested profile
- Machine overall dimensions: 1050 mm (a) x 280 mm (b) x 720 mm (c)
- Machine weight: 135 kg
