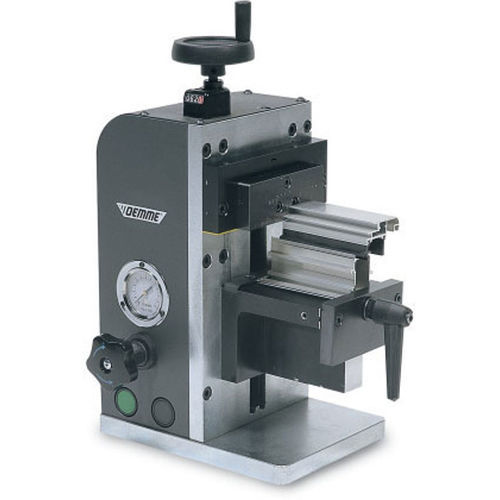

Pneumatic shear tester device for thermal break profiles
Machine to test the shear strength of thermal break profiles according to norm EN14024
Technical data
- One phase motor 230 V – 50 Hz
- Maximum load: 15000 N
- Pusher feed speed: 5 mm/min. (constant)
- Pusher stroke: approx. 6 mm (with automaticfeedback in start position)
- Test sample length: 100 mm (+/-1)
- Height of the thrust point as to the support plane: min. 6 – max 160 mm
- Profile max height : 250 mm
- Idle rollers on bearings to keep straight the profile vertical wise
- Independent adjustment through a little wheel of the straight keeping rollers
- Adjustment of the lower support plane through a little wheel equipped with counter
- Quick unlocking device of the tested profile
- Machine overall dimensions: 1050 mm (a) x 280 mm (b) x 720 mm (c)
- Machine weight: 135 kg
Series equipment
- Serial port to connection to an external PC
- Installation, operation and maintenance manual
- Service spanners
Accessories on request
- Software for data processing
